HTR-A/C Fuse, A/C Compr. Hi & LOW PRESS Cutoff SW, G201

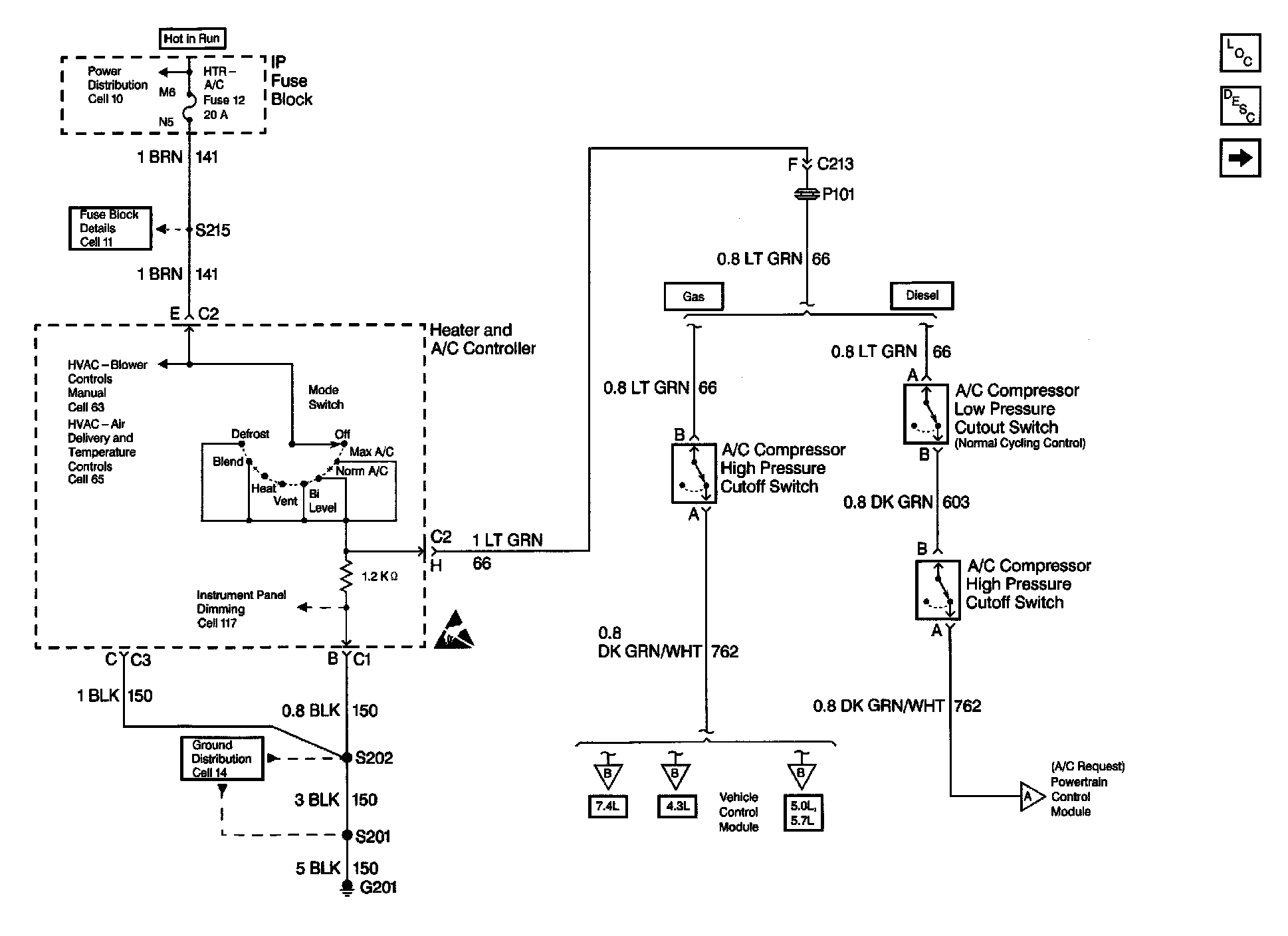

HVAC Compressor Control Schematics: HTR-A/C Fuse, A/C Compressor High Pressure Cutoff Switch, A/C Compressor Low Pressure Cutout Switch (Diesel):
