Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation >> HVAC System - Manual >> A/C System Refrigerant Flow

A/C System Refrigerant Flow

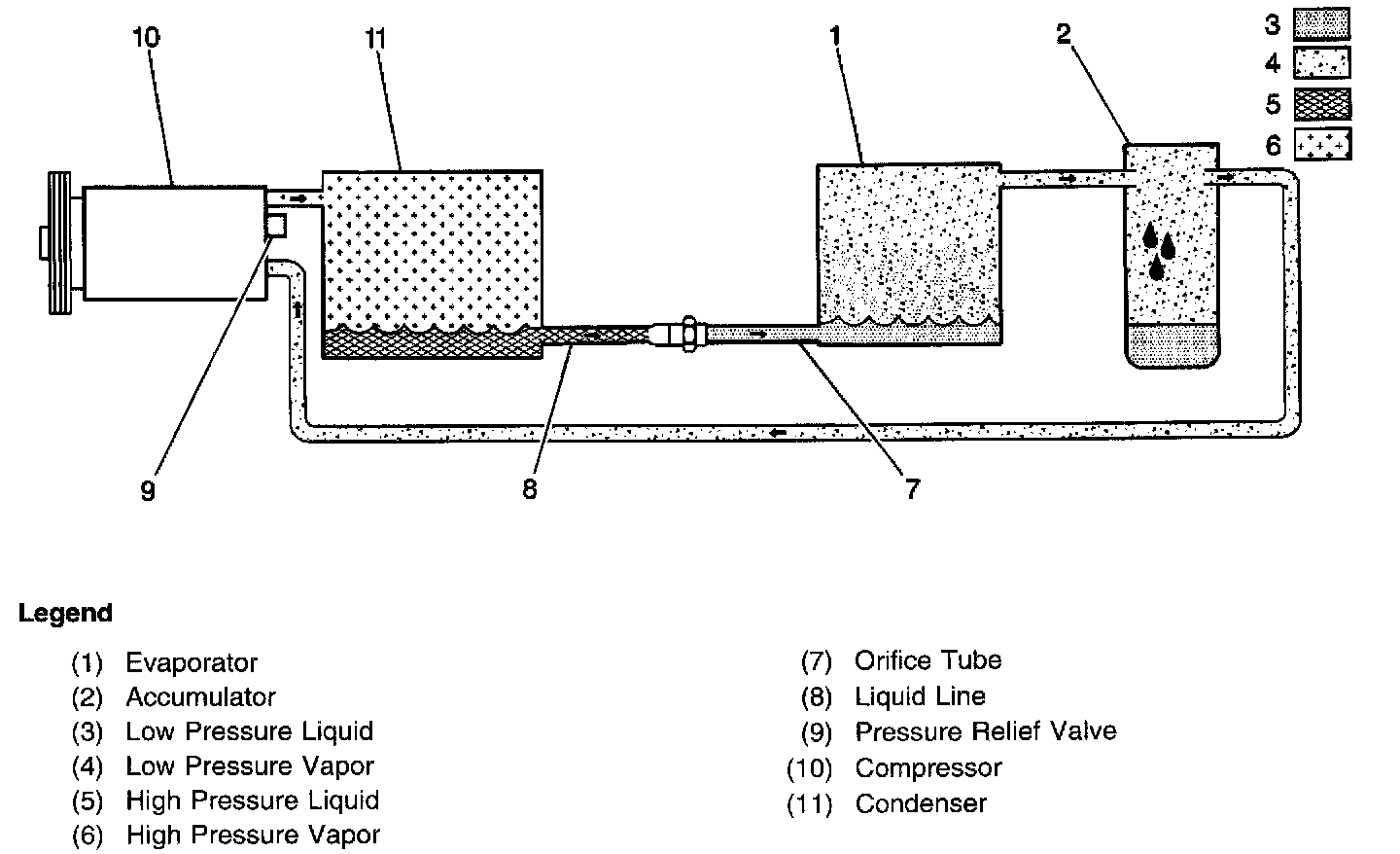

C60 A/C System Refrigerant Flow:
