Control Switch Replacement - Auxiliary (Center)

REMOVAL PROCEDURE
1. Remove the instrument cluster trim plate.
2. Disconnect the electrical connector from the switch.

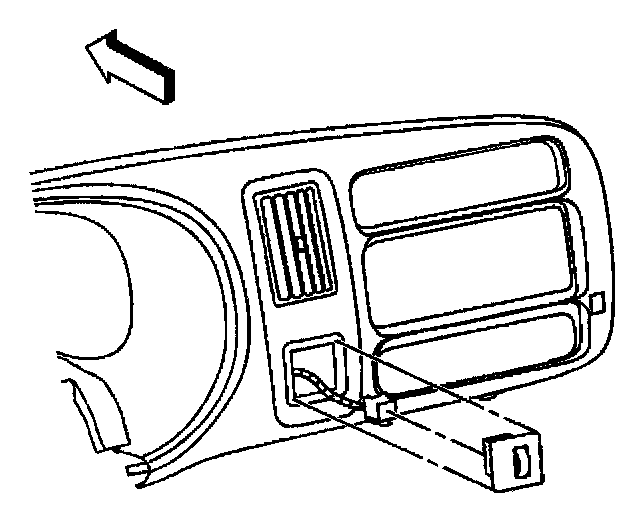

3. Remove the switch from the bezel by releasing the tabs on the side of the switch.

INSTALLATION PROCEDURE
1. Install the switch into the bezel by snapping the switch into place.
2. Connect the electrical connector to the switch.
3. Install the instrument cluster trim plate.
