Air Outlet Replacement - Lap

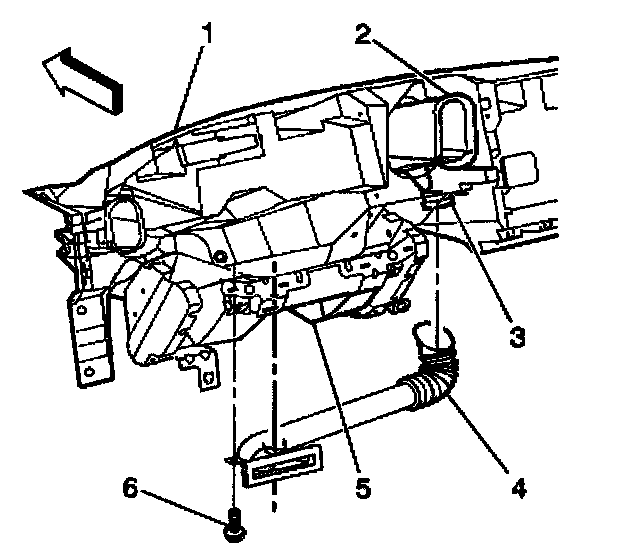

REMOVAL PROCEDURE
1. Remove the left knee bolster.
2. Remove the retaining screws (6) from the outlet duct.
3. Disconnect the duct from the air distribution duct (2).
4. Remove the outlet duct (4) from the vehicle.

INSTALLATION PROCEDURE
1. Install the outlet duct (4) into the vehicle.
2. Connect the duct to the air distribution duct (2).
3. Install the retaining screws (6) into the outlet duct.
4. Install the left knee bolster.
