Air Outlet Ducts Replacement - Auxiliary (Upper)

REMOVAL PROCEDURE

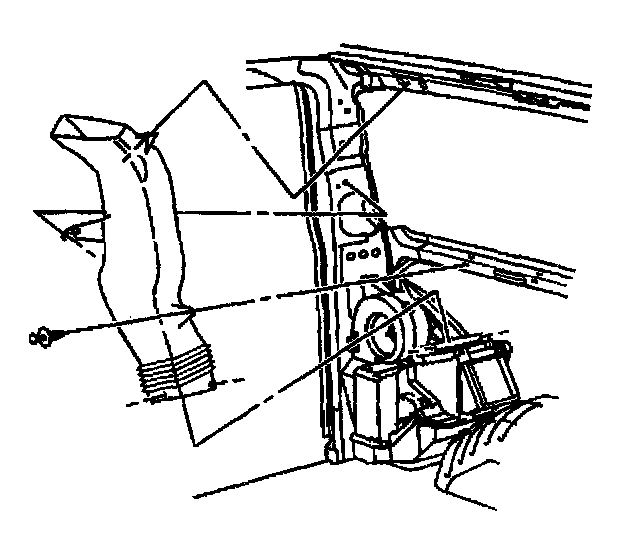

1. Remove the left rear quarter trim panel.
2. Remove the left rear corner garnish molding.
3. Remove the retainers from the air duct.
4. Partially lower the rear headliner in order to remove the upper air duct from the vent duct.
5. Disconnect the duct from the auxiliary heater.
6. Remove the duct from the vehicle.

INSTALLATION PROCEDURE
1. Install the duct to the vehicle.
2. Connect the duct to the auxiliary heater.
3. Connect the air duct to the upper headliner.
4. Install the headliner.
5. Install the retainers to the air duct.
6. Install the left rear corner garnish molding.
7. Install the left rear quarter trim panel.
