Air Outlet Ducts Replacement - Auxiliary (Lower)

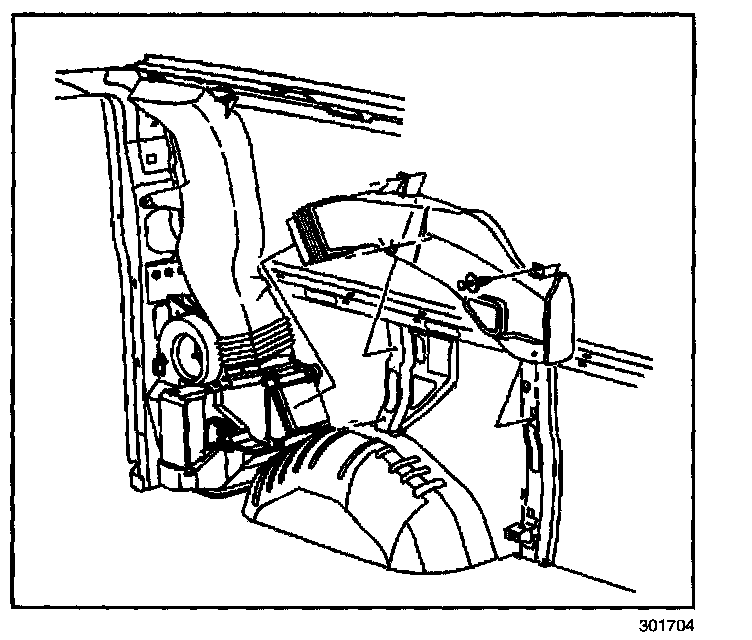

REMOVAL PROCEDURE
1. Remove the left rear quarter trim panel.
2. Remove the retainers from the air duct.
3. Disconnect the air duct from the floor vent.
4. Remove the duct from the vehicle.

INSTALLATION PROCEDURE
1. Install the air duct to the vehicle.
2. Connect the air duct to the floor vent.
3. Install the retainers to the air duct.
4. Install the left rear quarter trim panel.
