Air Outlet Duct Replacement - Left Floor

REMOVAL PROCEDURE




1. Remove the left knee bolster.
2. Remove the screw retainer from the air outlets.

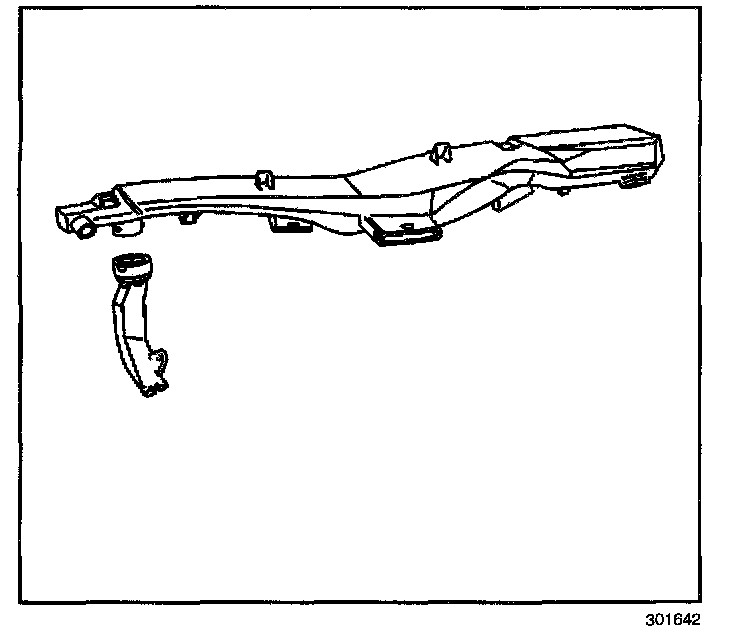

3. Remove the left inner air outlet duct from the vehicle.




4. Remove the left outer air outlet duct from the vehicle.

INSTALLATION PROCEDURE

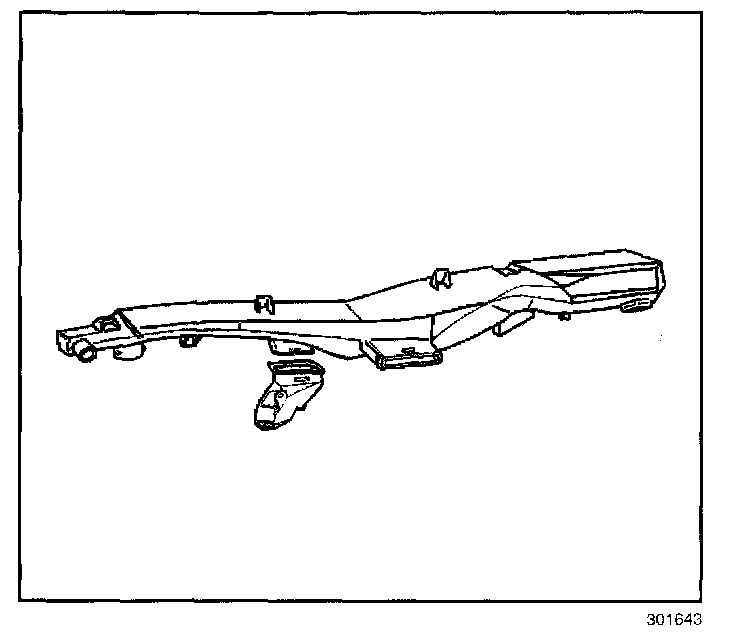

1. Install the left outer air outlet duct into the vehicle.




2. Install the left inner air outlet duct into the vehicle.
3. Install the screw retainer to the air outlets.
4. Install the left knee bolster.
