Air Outlet Replacement - Right Floor

REMOVAL PROCEDURE




1. Remove the right knee bolster.
2. Remove the screw retainer from the air outlets.

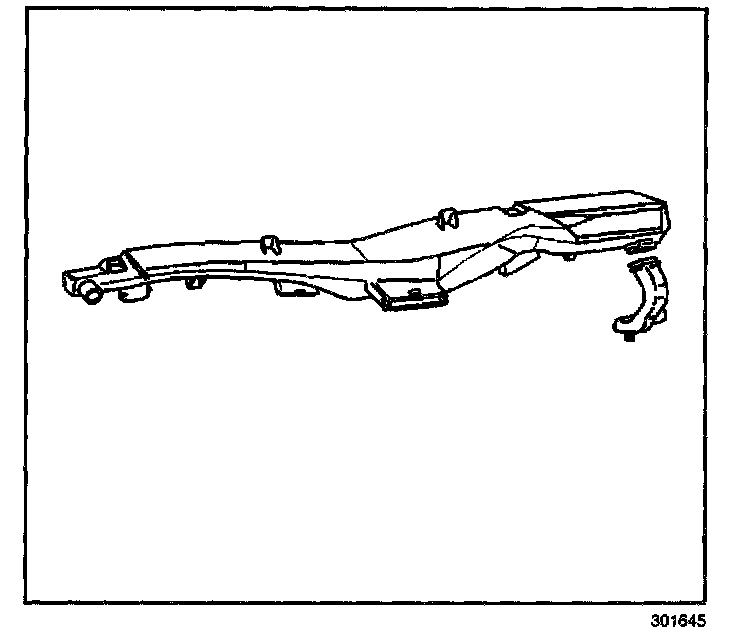

3. Remove the right inner air outlet duct from the vehicle.




4. Remove the right outer air outlet duct from the vehicle.

INSTALLATION PROCEDURE

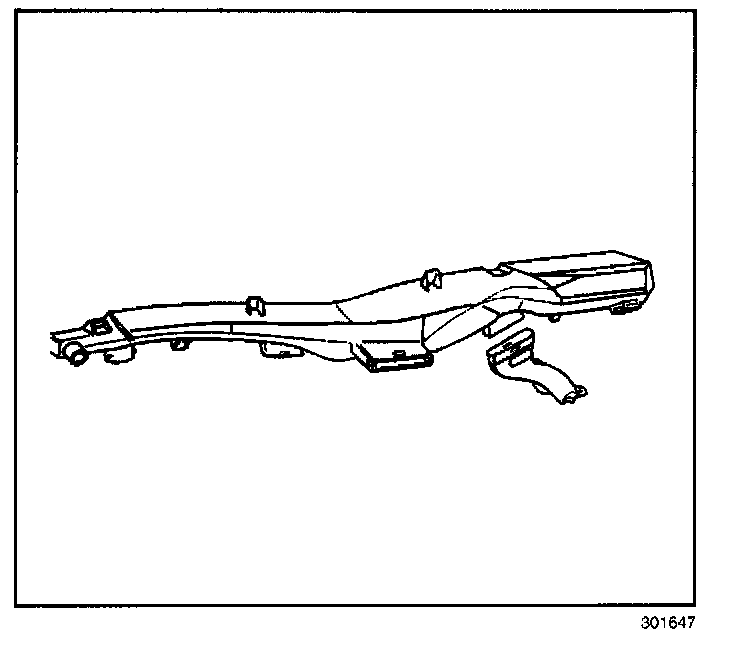

1. Install the right outer air outlet duct into the vehicle.




2. Install the right inner air outlet duct into the vehicle.
3. Install the screw retainer to the air outlets.
4. Install the right knee bolster.
