Mode Actuator Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the actuator.

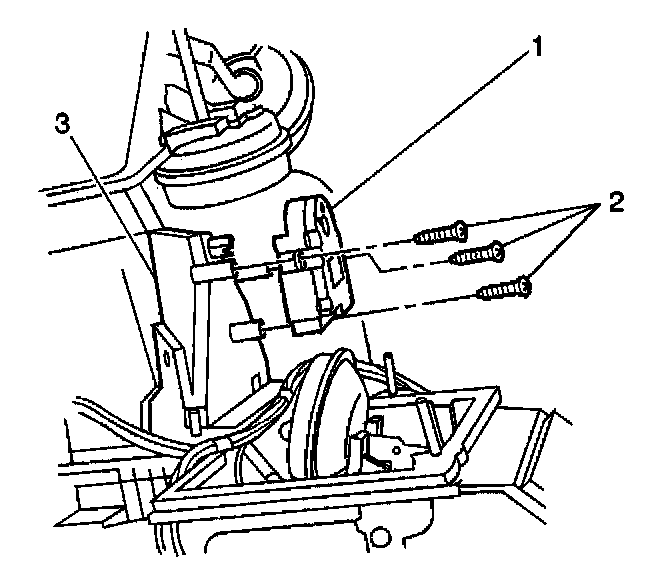

3. Remove the temperature door actuator retaining screws (2) from the actuator.
4. Remove the temperature door actuator (1) from the vehicle.

INSTALLATION PROCEDURE
1. Install the temperature door actuator (1) into the vehicle.
2. Install the temperature door actuator retaining screws (2) into the actuator.
3. Connect the electrical connector to the actuator.
4. Connect the negative battery cable.
