Exhaust Manifold Replacement - Right

Removal Procedure

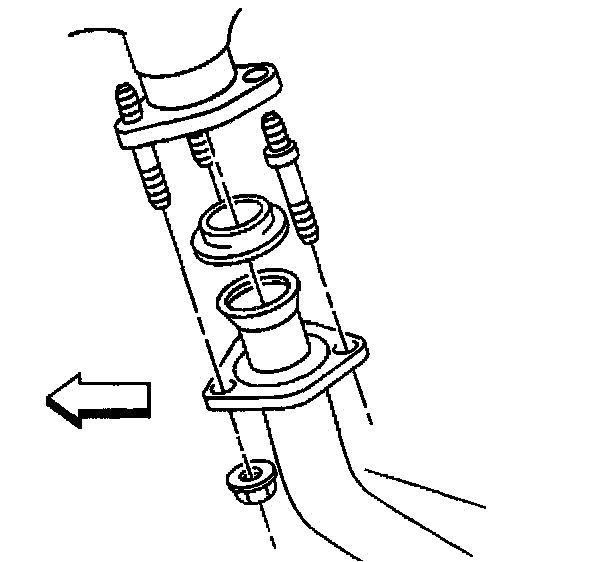

1. Remove the exhaust pipe from the exhaust manifold.
2. Remove the engine cover.
3. Disconnect the oxygen sensor electrical connector.
4. Remove the air cleaner assembly.
5. Remove the oil level indicator tube.

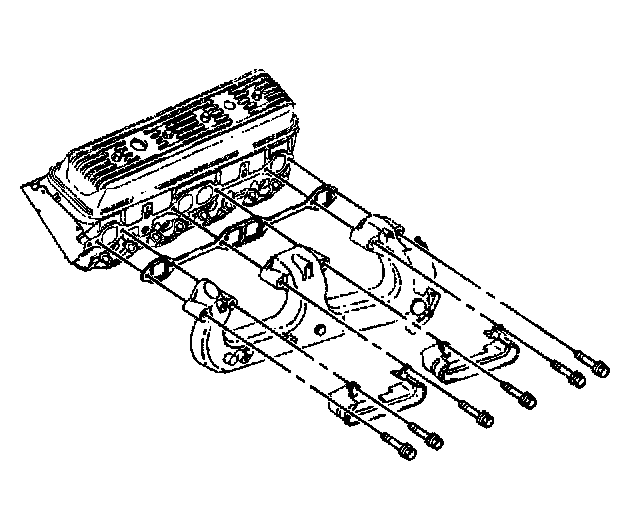

6. Remove the exhaust manifold.
7. Clean all selling surfaces.

Installation Procedure





1. Install the exhaust manifold..
2. Install the oil level indicator tube.





3. Install the exhaust pipe to the exhaust manifold.
4. Connect the oxygen sensor electrical connector.
5. Install the air cleaner assembly.
6. Install the engine cover.
