Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Valve Train Diagnosis

Valve Train Diagnosis

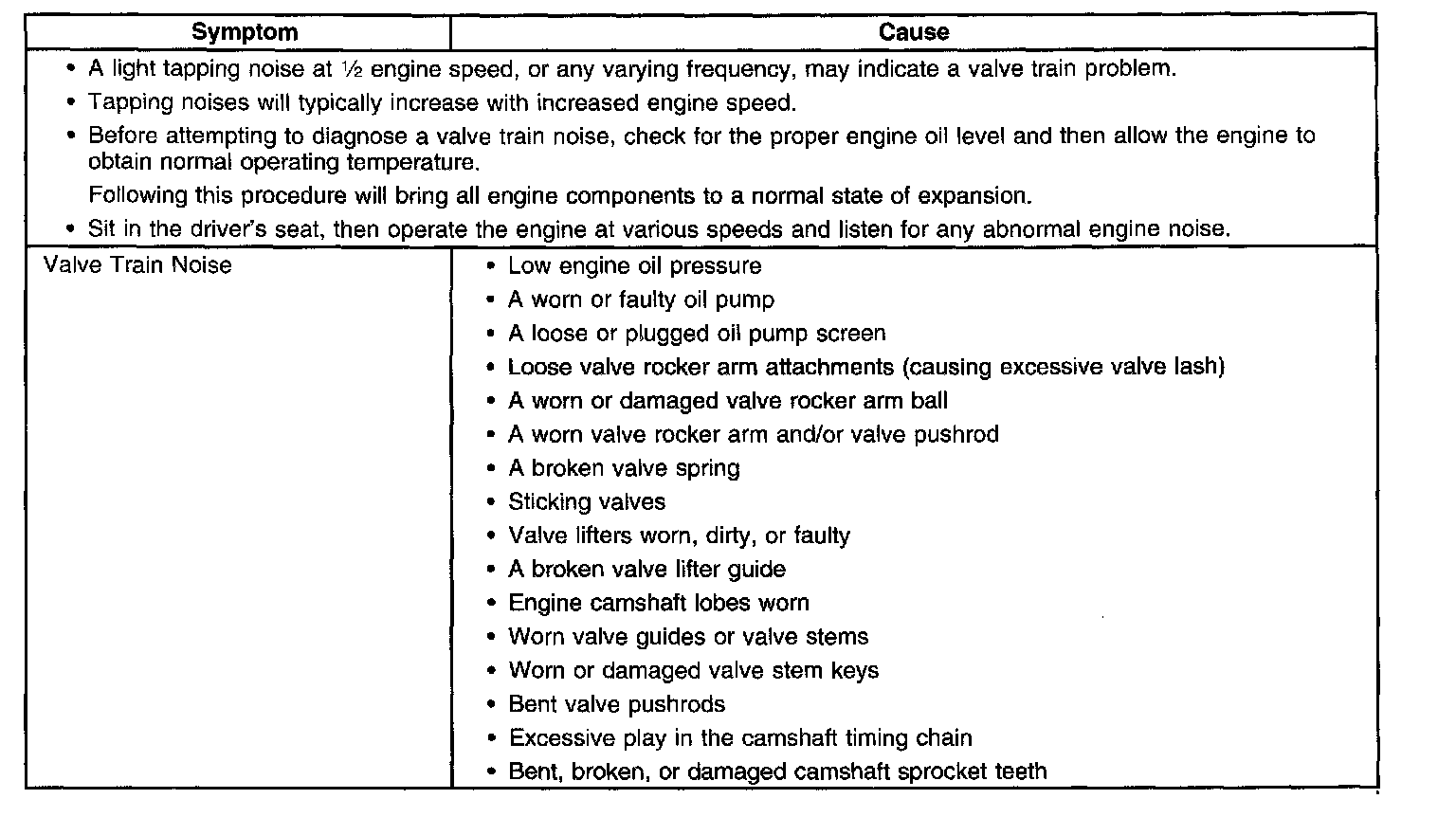

General Information

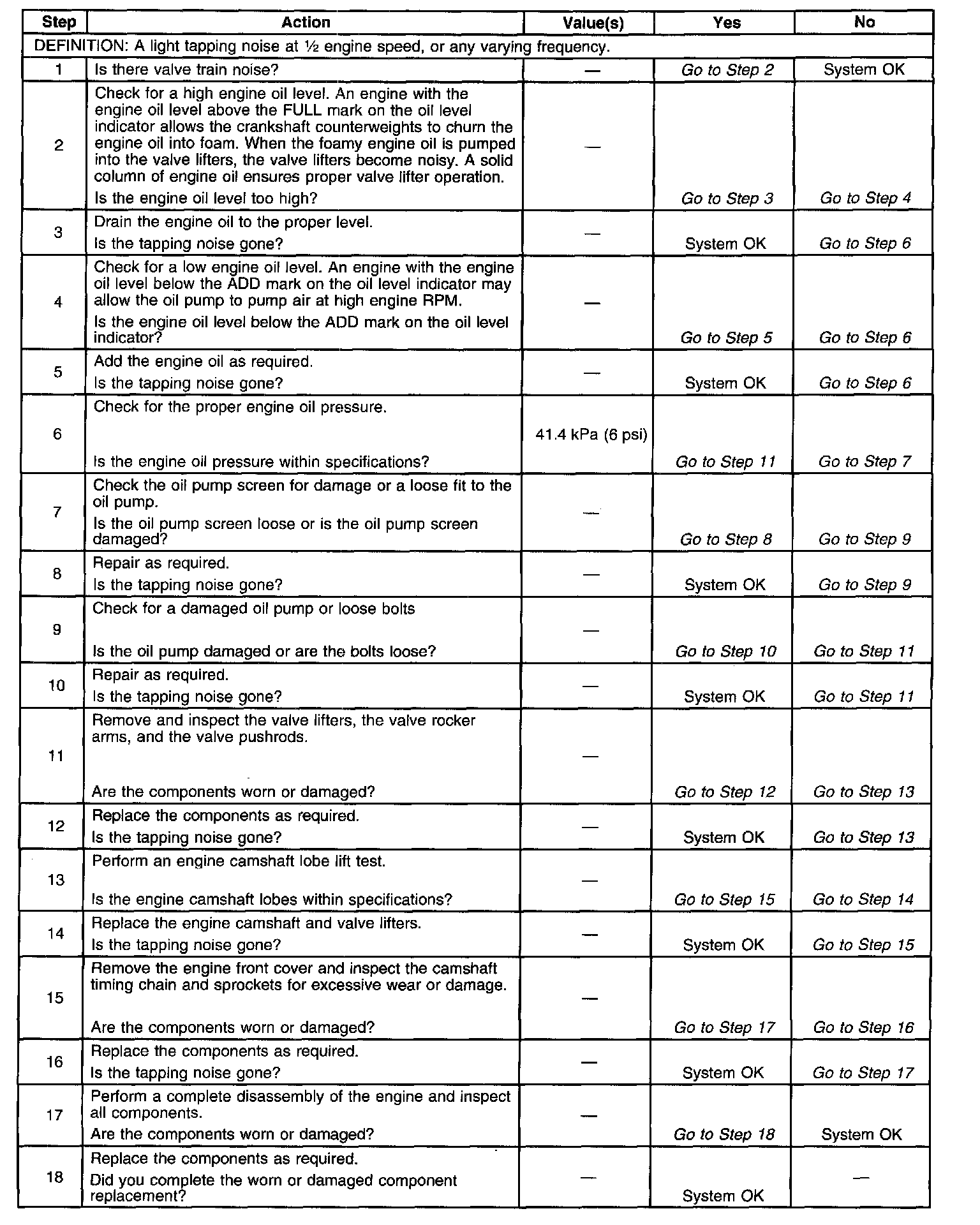

Diagnostic Table
