6. Water Pump Removal

- Tools Required
- J 41240 Fan Clutch Remover and Installer

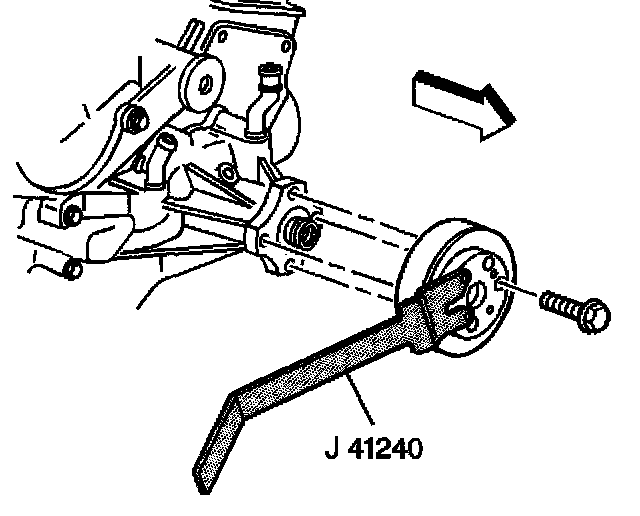

1. Remove the bolts and the fan and water pump pulley using the J 41240.

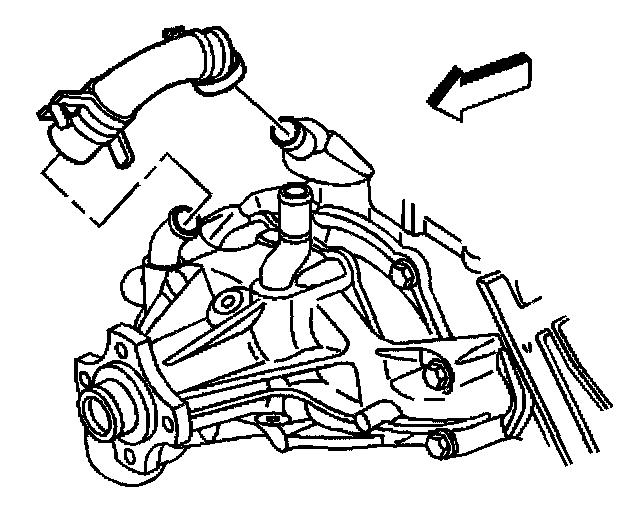

2. Remove the clamps and the water pump inlet hose.

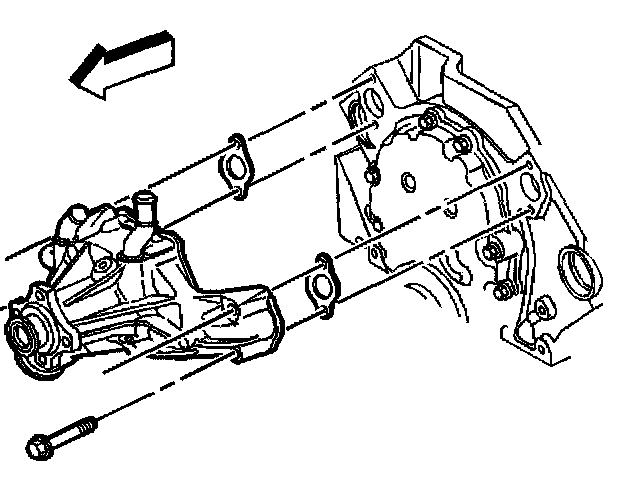

3. Remove the water pump bolts.
4. Remove the water pump.
5. Remove the water pump gaskets.
6. Discard the water pump gaskets.
