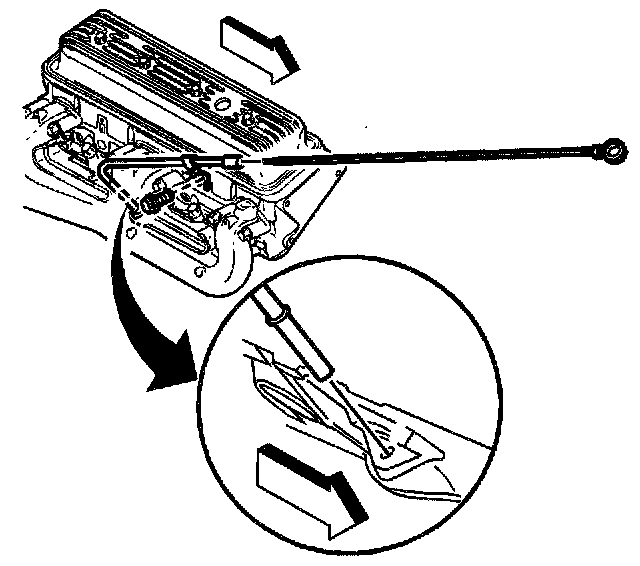

5. Oil Level Indicator and Tube Removal
5. Oil Level Indicator and Tube Removal
1.
Remove the oil level indicator from the oil level indicator tube.
2.
Remove the oil level indicator tube bolt.
3.
Remove the oil level indicator tube from the engine block.
