Oil Cooler: Service and Repair

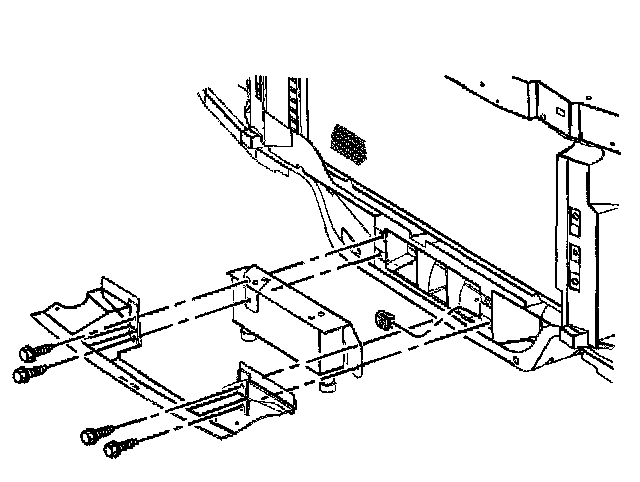

Removal Procedure
1. Raise the vehicle. Support the vehicle with suitable safety stands.
2. Remove the air baffle from the vehicle.
3. Disconnect the oil cooler lines from the auxiliary oil cooler.





4. Remove the auxiliary oil cooler from the vehicle.

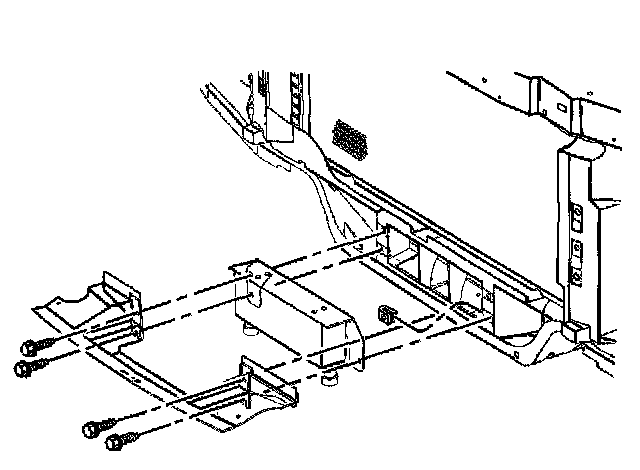

Installation Procedure





1. Install the auxiliary oil cooler.
2. Install the air baffle to the vehicle.
3. Connect the oil cooler lines to the vehicle.
4. Remove the safety stands.
5. Lower the vehicle.
