Accessory Mounting Brackets Replacement (Generator)
Removal Procedure1. Disconnect the battery negative cable. Refer to Battery Cable Replacement (Battery Disconnect/Connect) in Starting and Charging.
2. Remove the engine cooling fan.
3. Remove the drive belt.
4. Remove the generator. Refer to Generator Replacement (Gasoline Engines) in Starting and Charging.

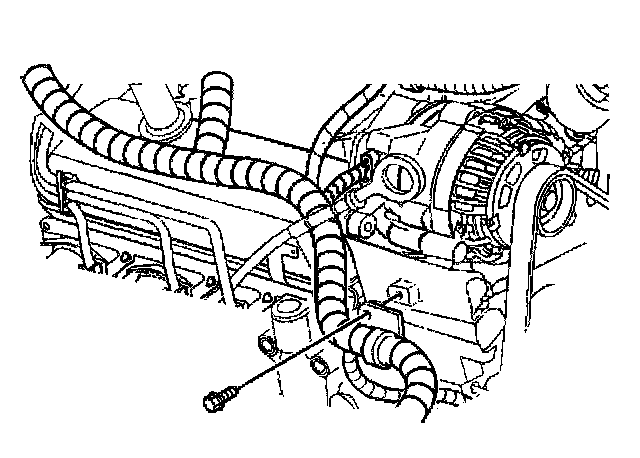

5. Remove the wire harness bracket from the generator mounting bracket.
6. Remove the drive belt tensioner.
7. Remove the drive belt idler pulley.
8. Remove the three bolts and nut holding the generator bracket to the engine.

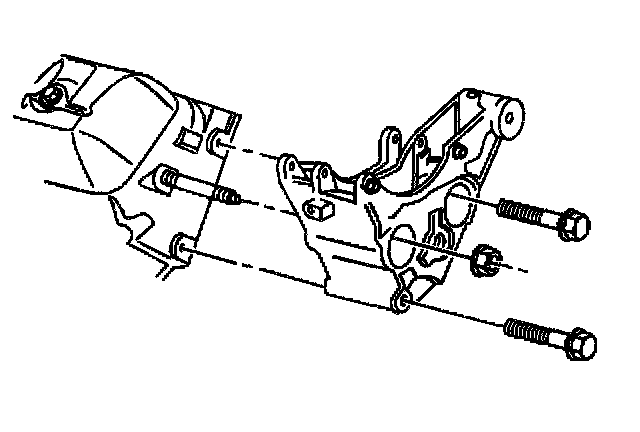

9. Slide the accessory mounting bracket off of the stud.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.

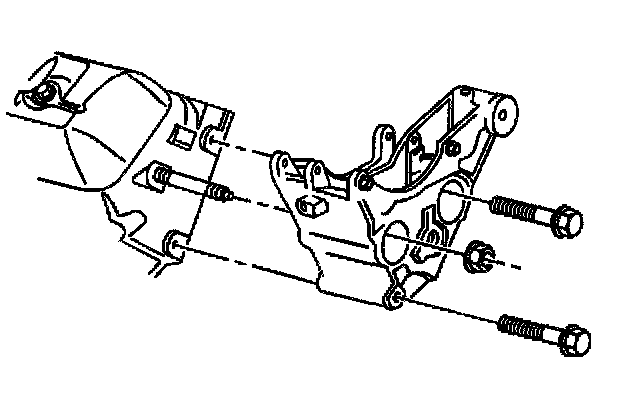

1. Slide the bracket on the stud.
2. Instal the three bolts and the nut.
- Tighten the bolts and nut to 41 Nm (30 ft. lbs.).
3. Install the drive belt idler pulley.
4. Install the drive belt tensioner.

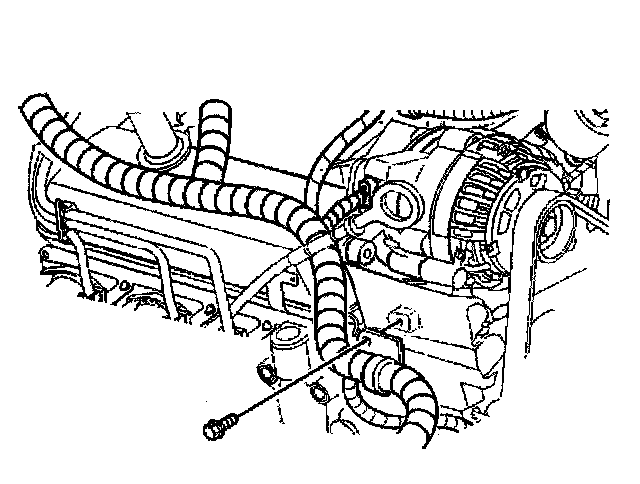

5. Install the wire harness bracket to the generator mounting bracket..
- Tighten the bolt to 20 Nm (15 ft. lbs.).
6. Install the generator.
7. Install the drive belt.
8. Connect the battery negative cable.
9. Install the engine cooling fan.
