Accessory Mounting Brackets Replacement (AC)
Removal Procedure1. Remove the engine cooling fan.
2. Remove the drive belt.
Important: Do not evacuate the air conditioning system.
3. Remove the mounting bolts for the air conditioning compressor, if equipped.
4. Move the compressor aside and support.
5. Remove the drive belt idler pulley if not equipped with A/C.
6. Remove the power steering pump pulley.

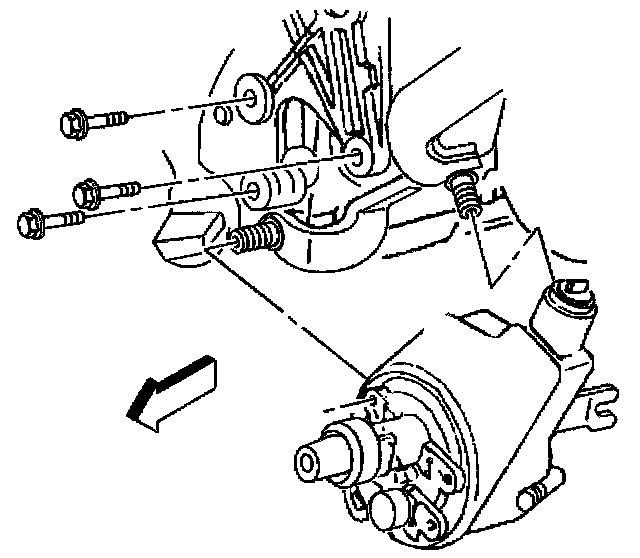

7. Remove the three bolts holding the power steering pump to the accessory mounting bracket.

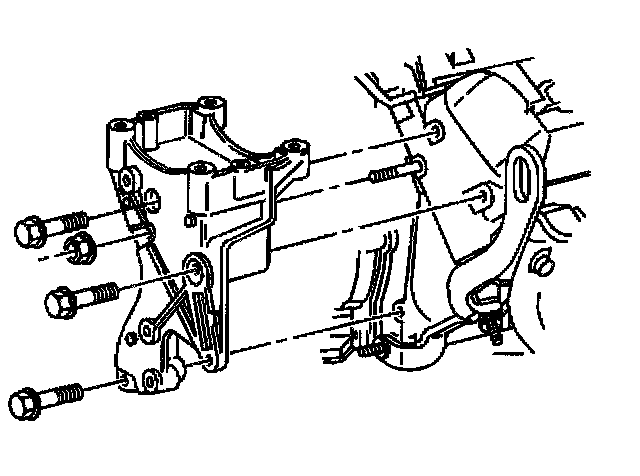

8. Remove the three bolts and nut holding the accessory mounting bracket to the engine.
9. Slide the bracket off the stud and power steering pump.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.

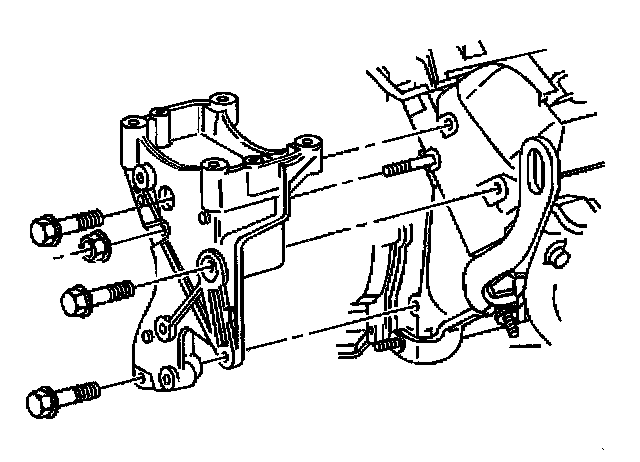

1. Slide the bracket on the stud and the power steering pump.
2. Install the three bolts and the nut.
- Tighten the bolts and nut to 41 Nm (30 ft. lbs.).

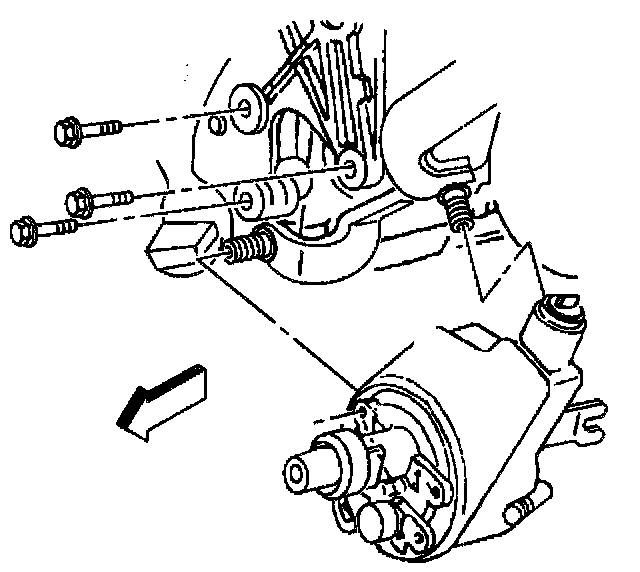

3. Install the three bolts for the power steering pump.
- Tighten the bolts to 44 Nm (32 ft. lbs.).
4. Install the power steering pump pulley.
5. Install the air conditioning compressor, if equipped.
6. Install the drive belt idler pulley if not equipped with A/C.
7. Install the drive belt.
8. Install the engine cooling fan.
