Valve Rocker Arm Cover Replacement (Right)

Removal Procedure
1. Remove the engine cover.

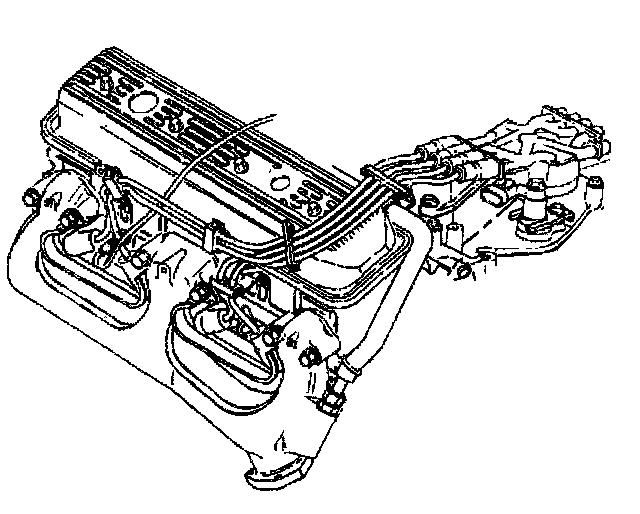

2. Disconnect the spark plug wires from the distributor cap.
3. Remove the PCV valve from the valve cover and set it aside.
4. Disconnect the coolant sender electrical connector.
5. Remove AIR Bypass Hose assembly, if so equipped.
6. In order to gain access, remove the A/C compressor, if equipped.
7. Remove the power steering pulley from the power steering pump.

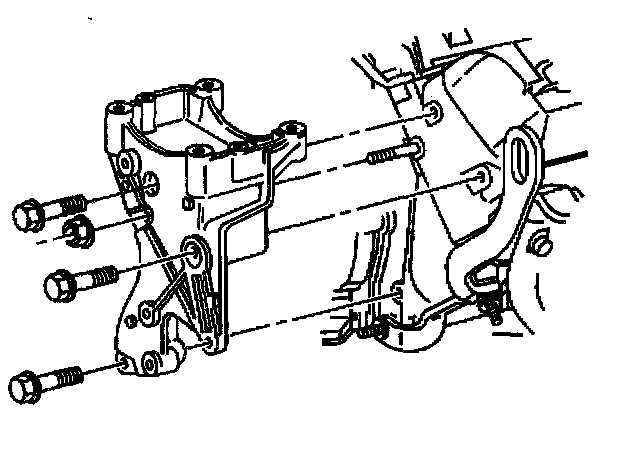

8. Remove the power steering pump mounting bracket using the following procedure:
- Remove two nuts from the back of the power steering pump.
- Remove the nut from the stud.
- Remove the three bolts from the mounting bracket.
- Slide the power steering pump mounting bracket forward, with the power steering pump still attached.
- Lay the pump and the bracket aside.

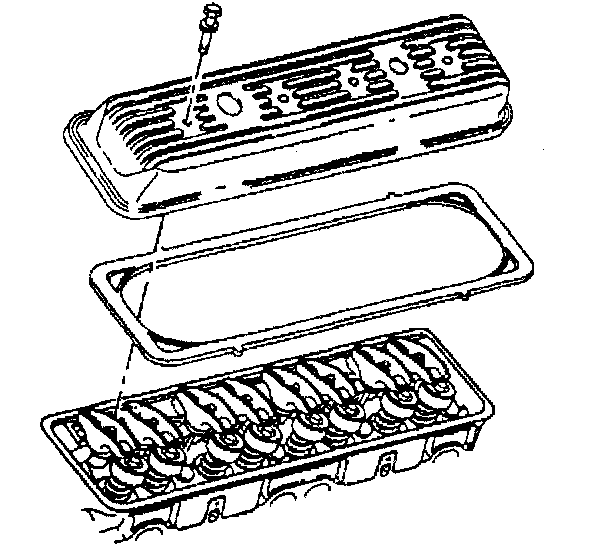

9. Remove the left valve cover from the engine.
10. Clean all sealing surfaces.

Installation Procedure





1. Install the left valve cover to the engine.





2. Install the power steering pump pulley to the power steering pump.

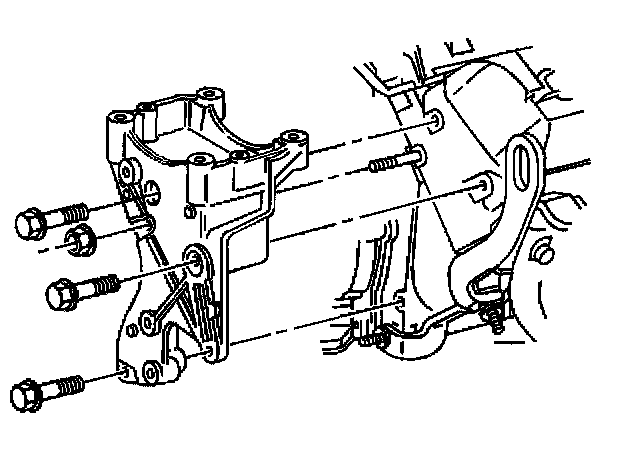

- Install the power steering pump bracket onto the stud.
- Install the three bolts finger tight.
- Install the two nuts to the back of the power steering pump finger tight.

Notice: Refer to Fastener Notice in Service Precautions.

- Tighten the nuts and the bolts to 44 Nm (32 ft. lbs.).
3. Install the power steering pump mounting bracket using the following procedure:
- Install the A/C compressor, if equipped.
- Connect the coolant sender electrical connector.
- Install the PCV valve to the valve cover.
- Install AIR Bypass Hose assembly, if so equipped.
- Connect the spark plug wires to the distributor cap.
- Install the engine cover.
