Valve Rocker Arm Cover Replacement (Left)
Removal Procedure1. Remove the engine cover.

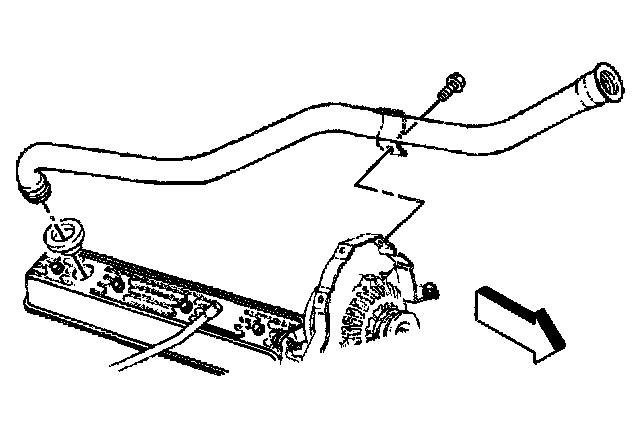

2. Remove the screw retaining the oil fill tube to the generator bracket.
3. Remove the oil fill tube from the engine.
4. Use the following procedure in order to gain access to the right side valve cover:
4.1. Disconnect the Ignition Control Module (ICM) electrical connector.
4.2. Open the engine electrical harness retainer.
4.3. Reposition the engine electrical harness over the ignition coil.
4.4. Disconnect the spark plug wires from the distributor cap.
4.5. Remove AIR Bypass hose assembly, if so equipped.
5. Remove the crankcase vent tube from the right side valve cover.

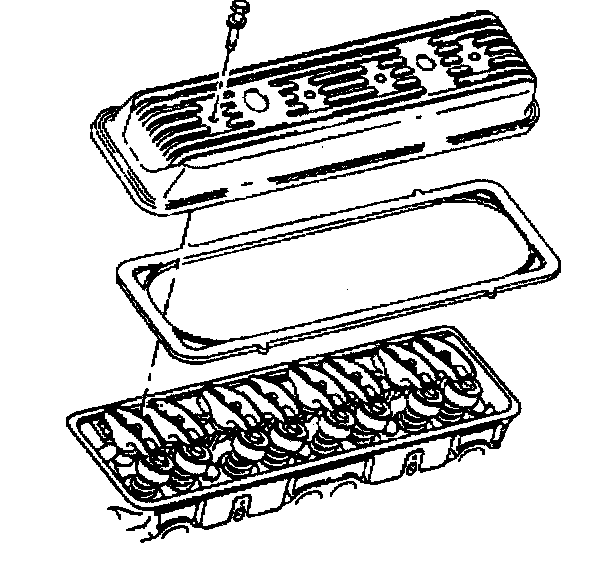

6. Remove the valve covers from the engine.
7. Clean all sealing surfaces.
Installation Procedure

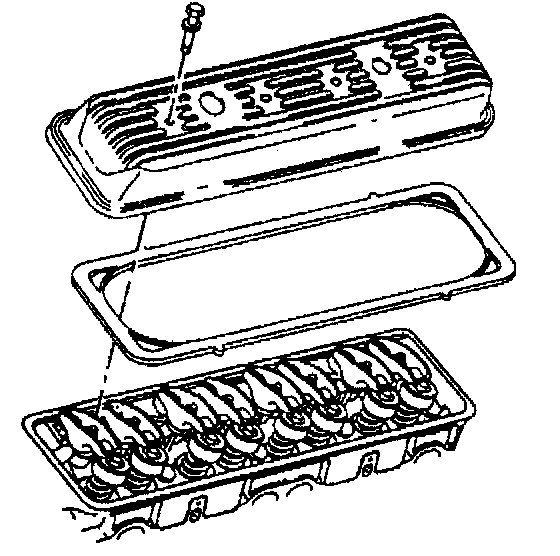

1. Install the right valve cover to the engine.
2. Install the crankcase vent tube to the right side valve cover.
3. Connect the spark plug wires to the distributor cap.
4. The wires and the distributor cap are numbered in order to aid assembly.
5. Install AIR Bypass Hose assembly, if so equipped.
6. Use the following procedure in order to reposition the engine electrical harness:
- Reposition the engine electrical harness into the harness retainer.
- Close the engine electrical harness retainer.
- Connect the ignition control module (ICM) electrical connector.
7. Install the engine oil fill tube to the engine.
8. Install the screw to the generator bracket.
- Tighten the screw to 20 Nm (15 ft. lbs.).
9. Install the negative battery cable.
10. Install the engine cover.
