Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Export >> Fuses >> HDLP

HDLP

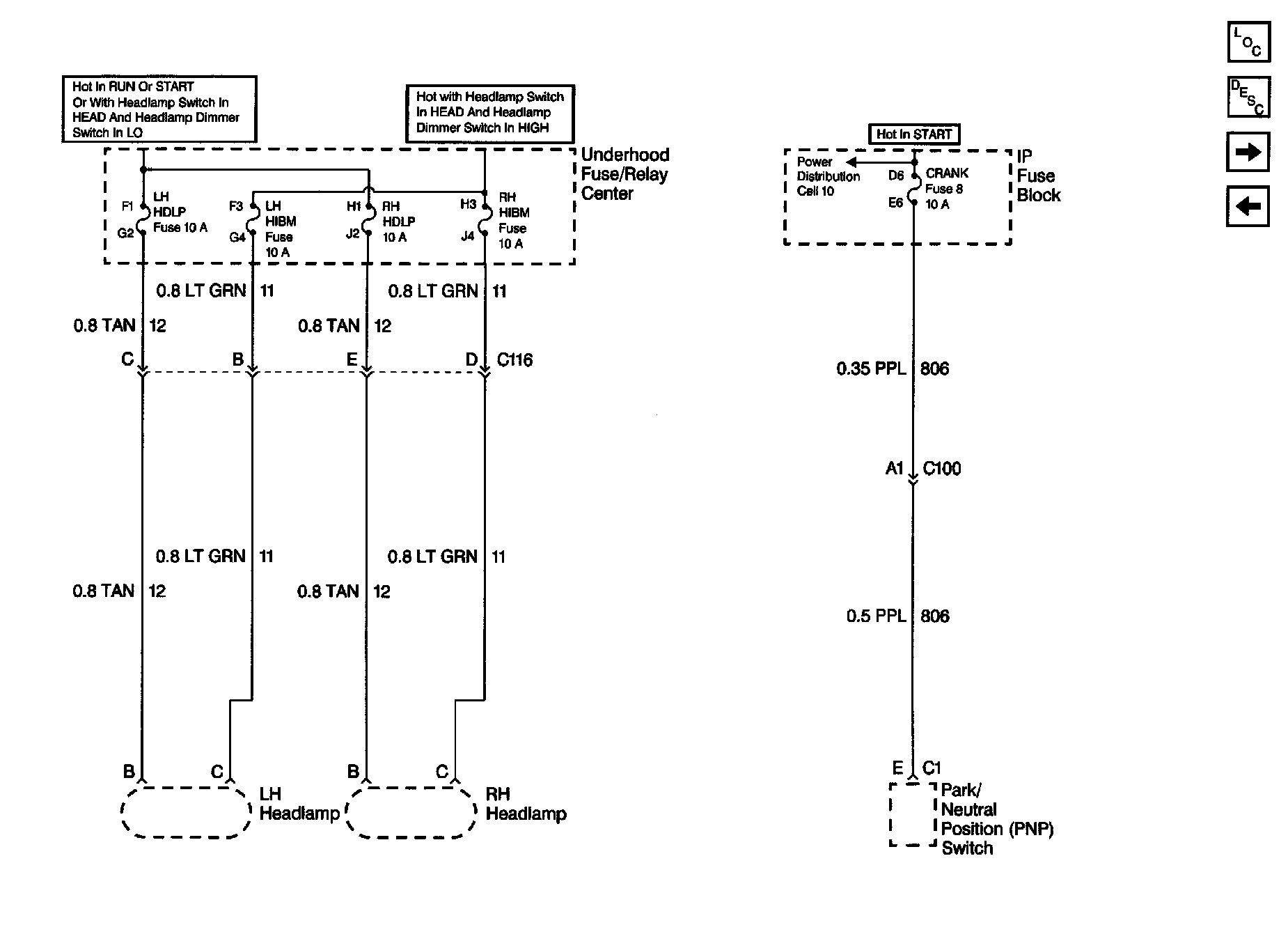

Fuse Block Details Schematics (Export): Left Headlamp, Left High Beam, Right Headlamp, Right High Beam, Crank:
