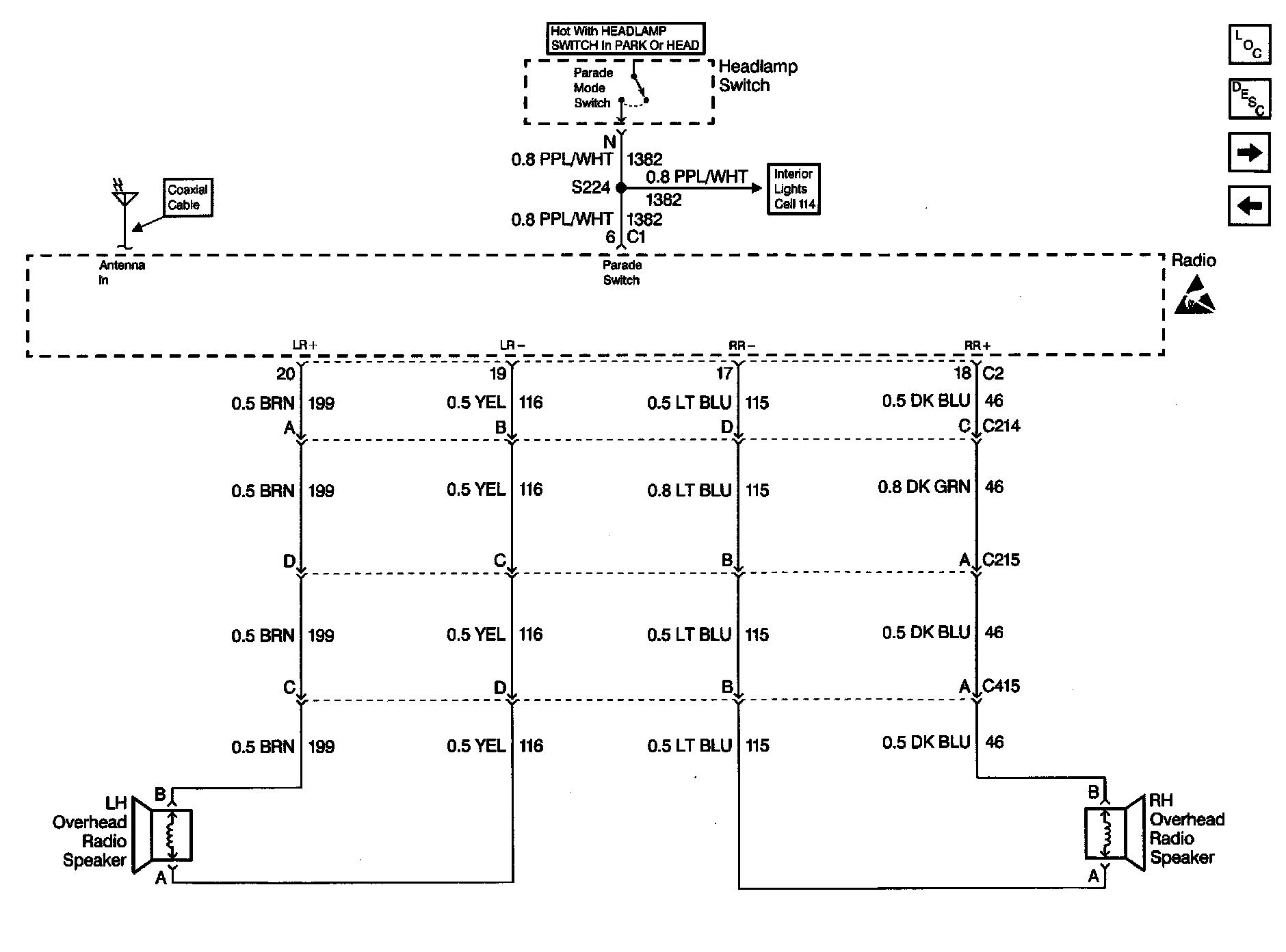

Rear Speakers With Upfitter Provisions

Radio/Audio System Schematics: Rear Speakers With Upfitter Provisions:
