Power Antenna, Remote CD Player & Speed Compensated Volume

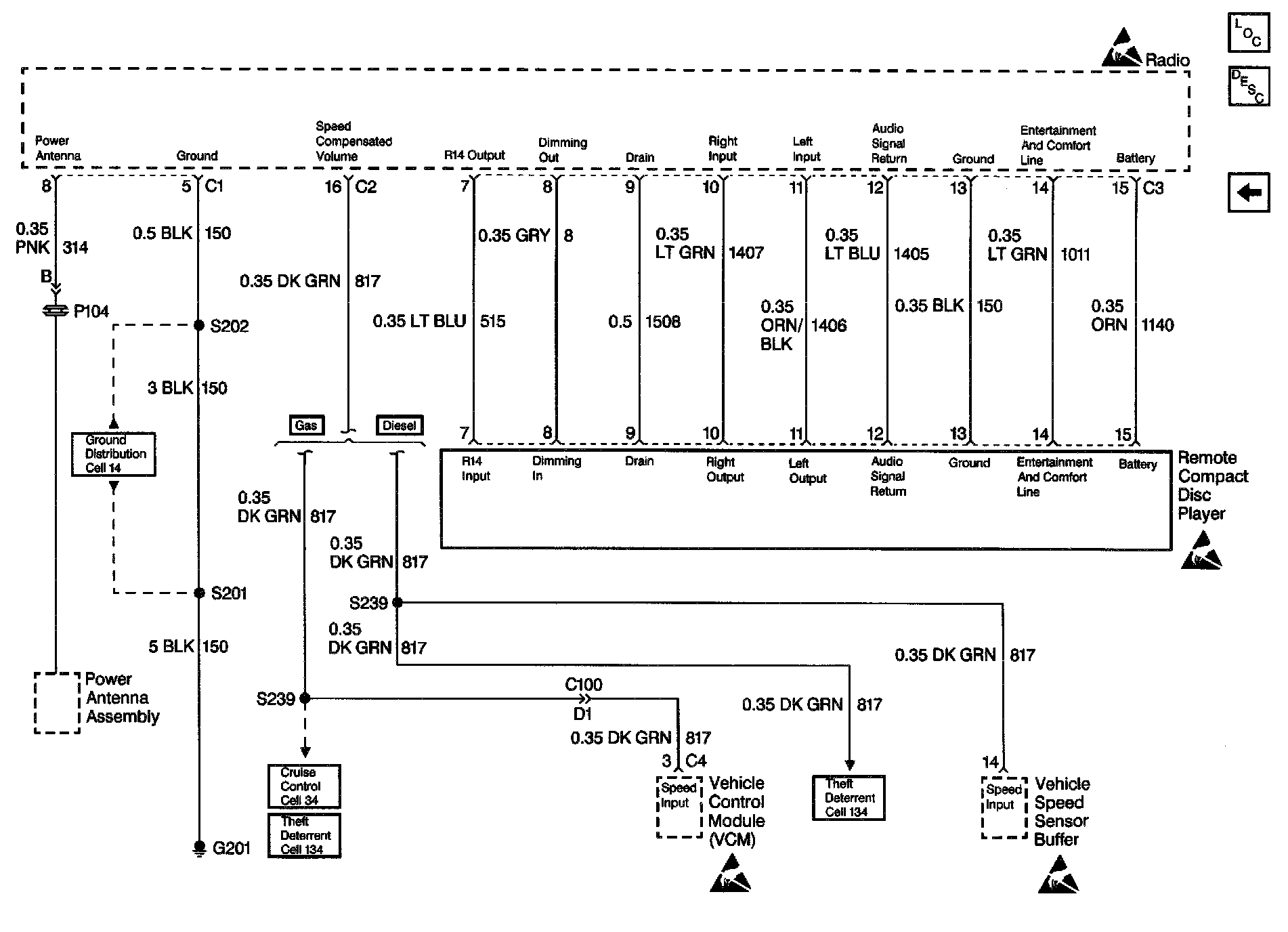

Radio/Audio System Schematics: Power Antenna, Remote Compact Disc Player And Speed Compensated Volume:
