Chevy Truck
>>
1999
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Power Mirror Switch And Motors
Power Mirror Switch And Motors

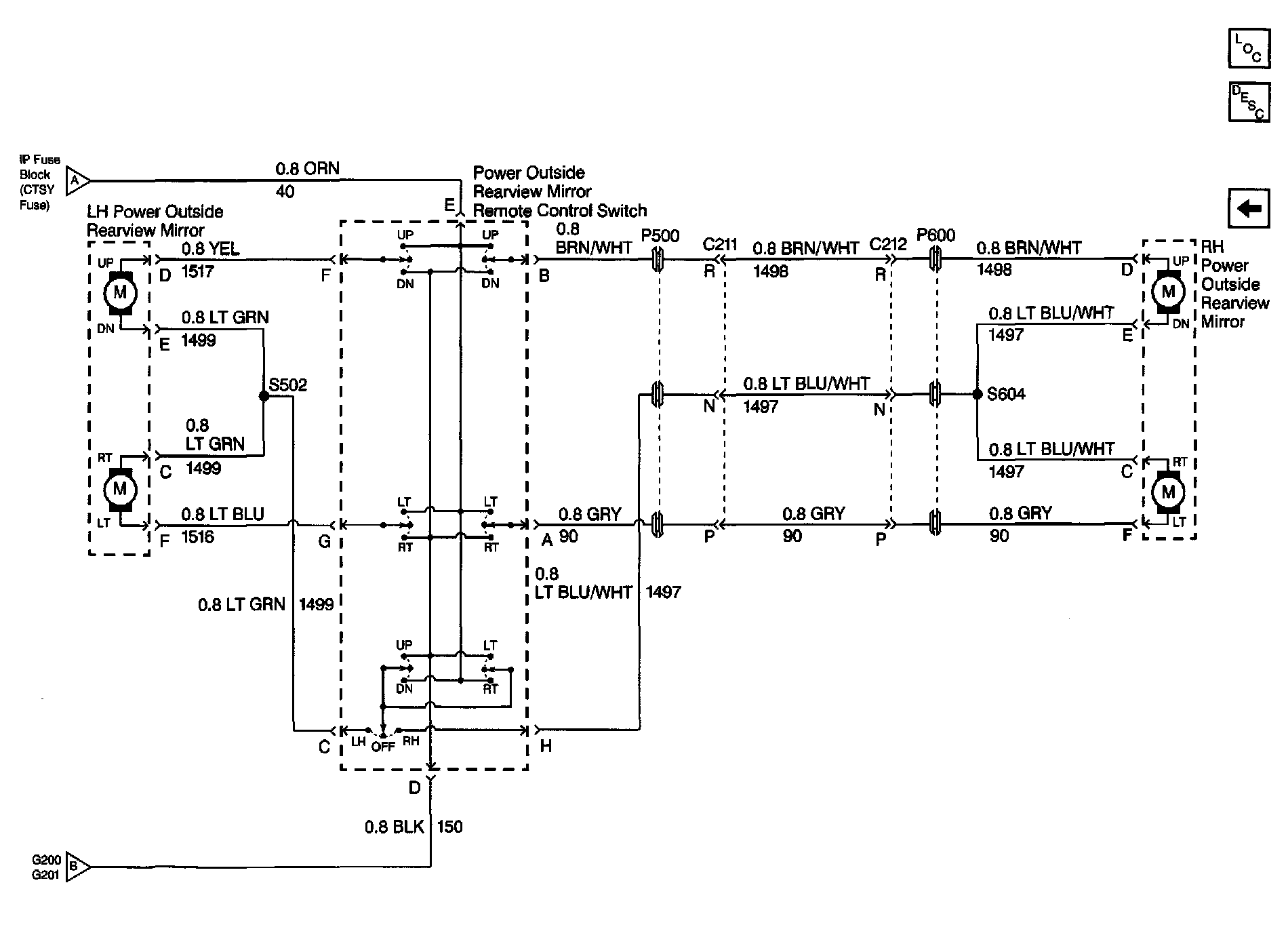

Outside Mirror Schematics: Power Mirror Switch And Motors:
