Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights >> Interior Lights Schematics >> Stepwell Lamps

Stepwell Lamps

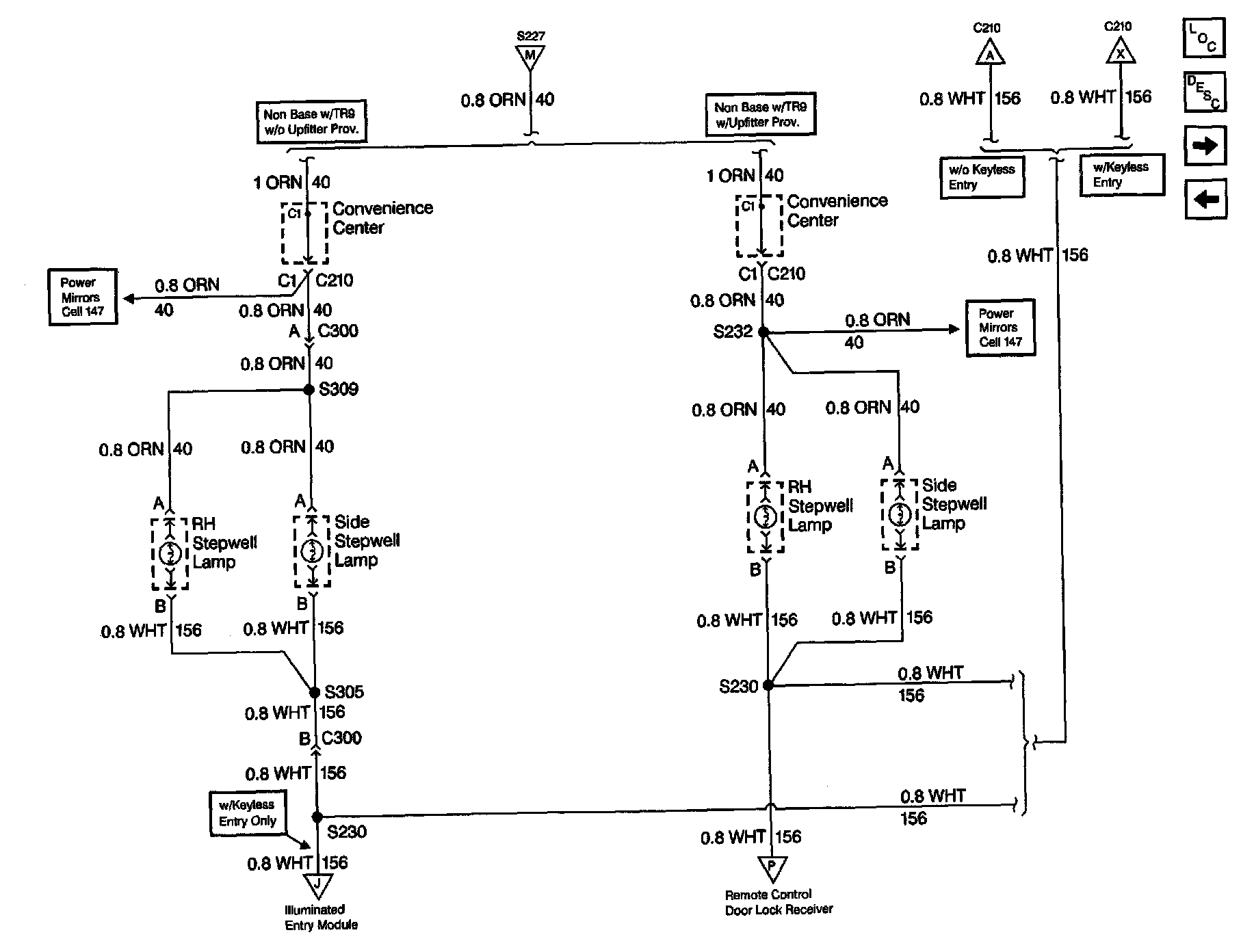

Interior Lights Schematics: Stepwell Lamps:
