Side DR Jamb SW, Right Rear DR Jamb SW, G200, G201, G401, G402

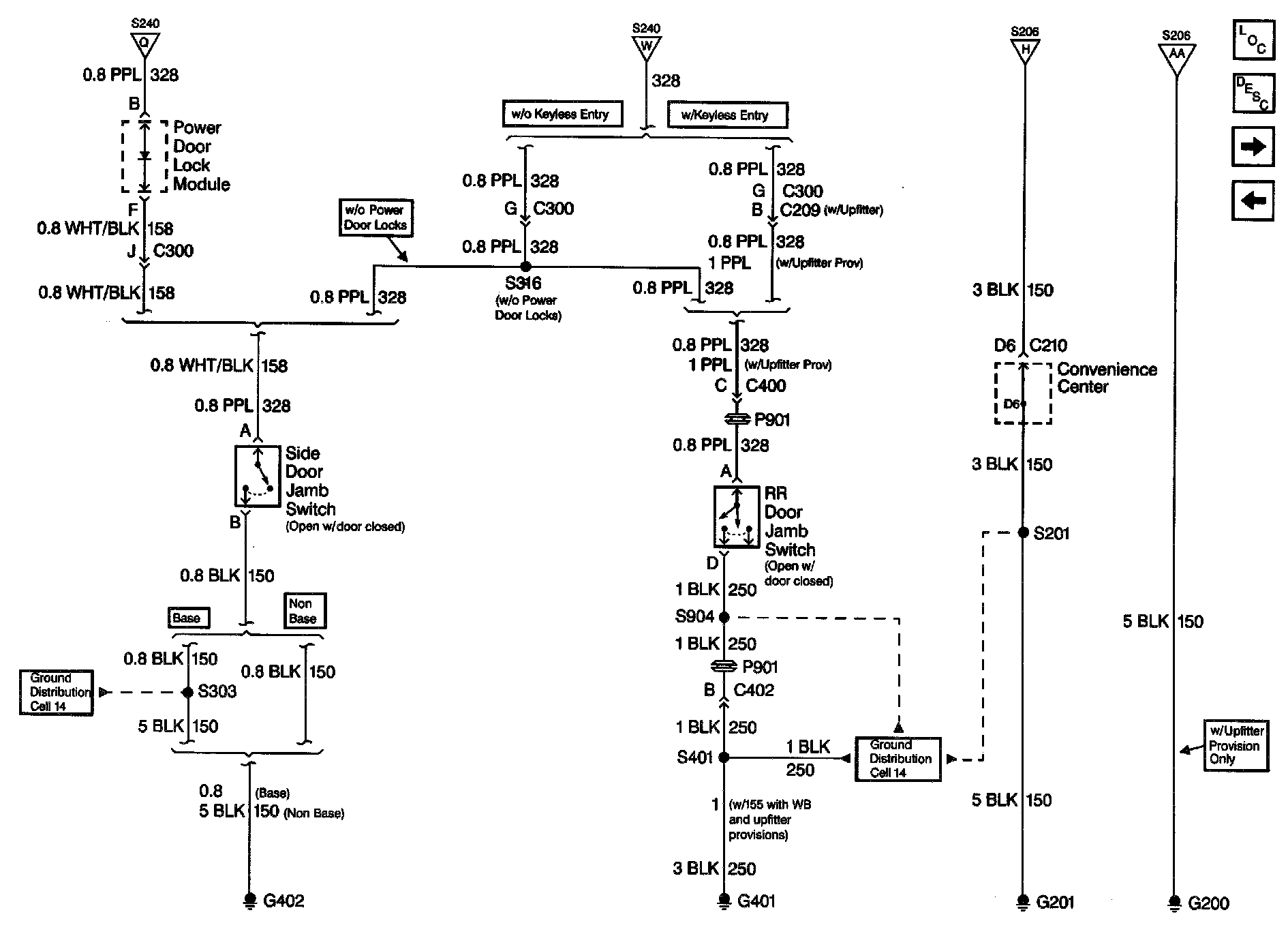

Interior Lights Schematics: Side Door Jamb Switch, Right Rear Door Jamb Switch, G200, G201, G401, G402:
