Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lights
>>
Interior Lights Schematics
>>
PWR ACCY, Gauges, Park LPS Fuses, G200 (W/ Keyless Entry)
PWR ACCY, Gauges, Park LPS Fuses, G200 (W/ Keyless Entry)

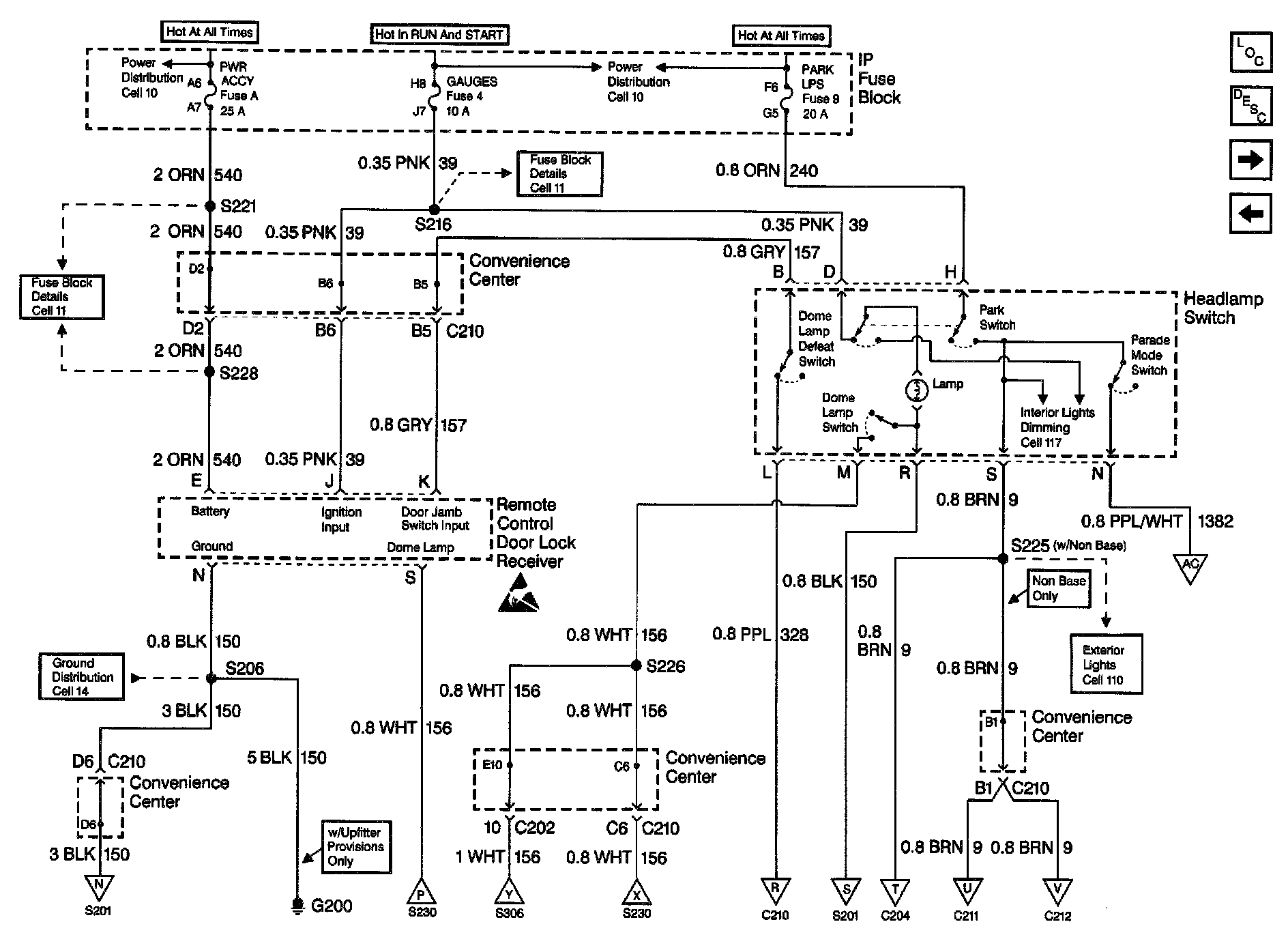

Interior Lights Schematics: PWR ACCY, Gauges, Park LPS Fuses, G200 (W/ Keyless Entry):
