PWR ACCY, Gauges, PK LPS Fuses; ILLUM Entry Module, G200

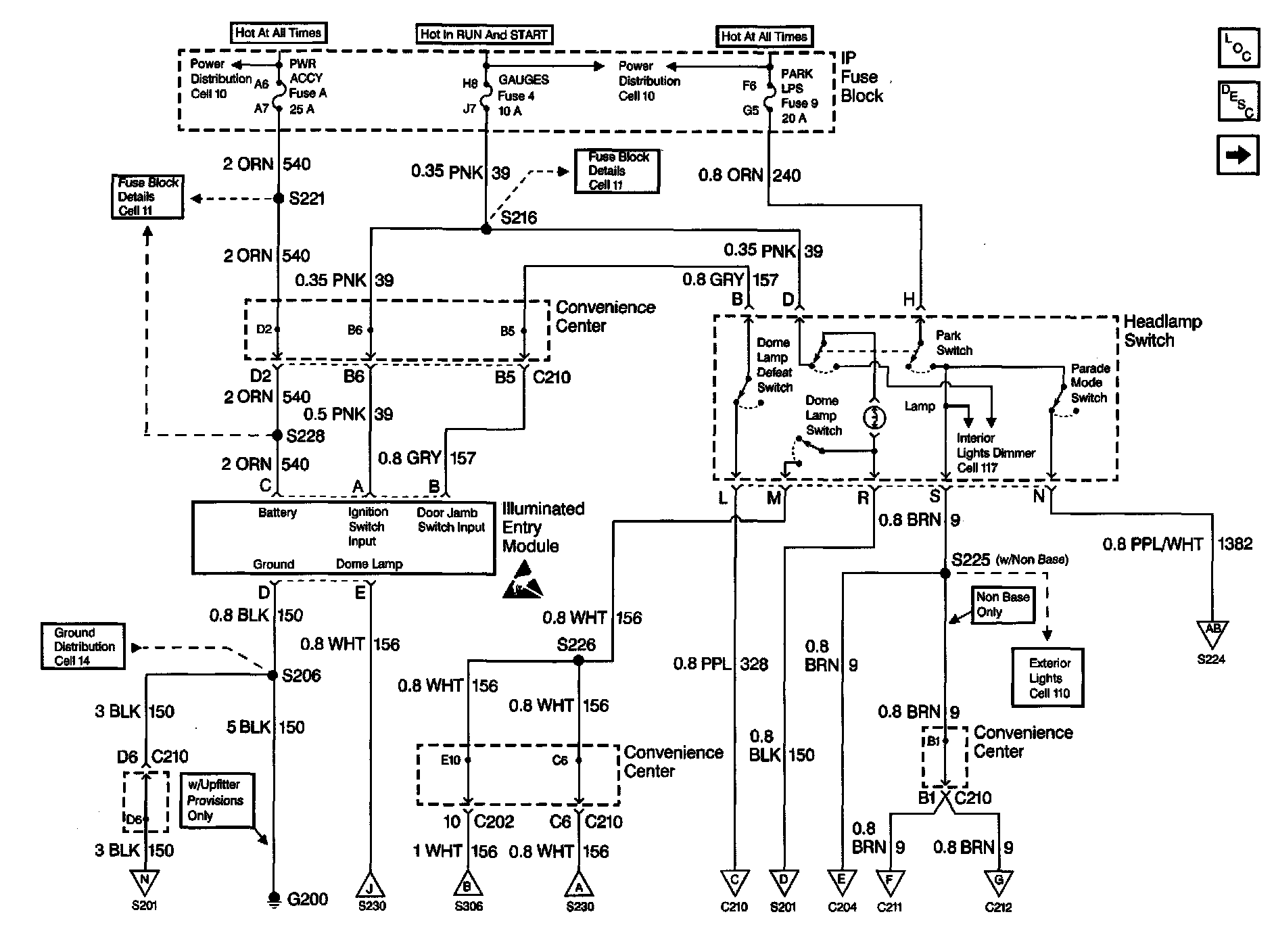

Interior Lights Schematics: PWR ACCY, Gauges, Park LPS Fuses; Illuminated Entry Module, G200 (W/O Keyless Entry):
