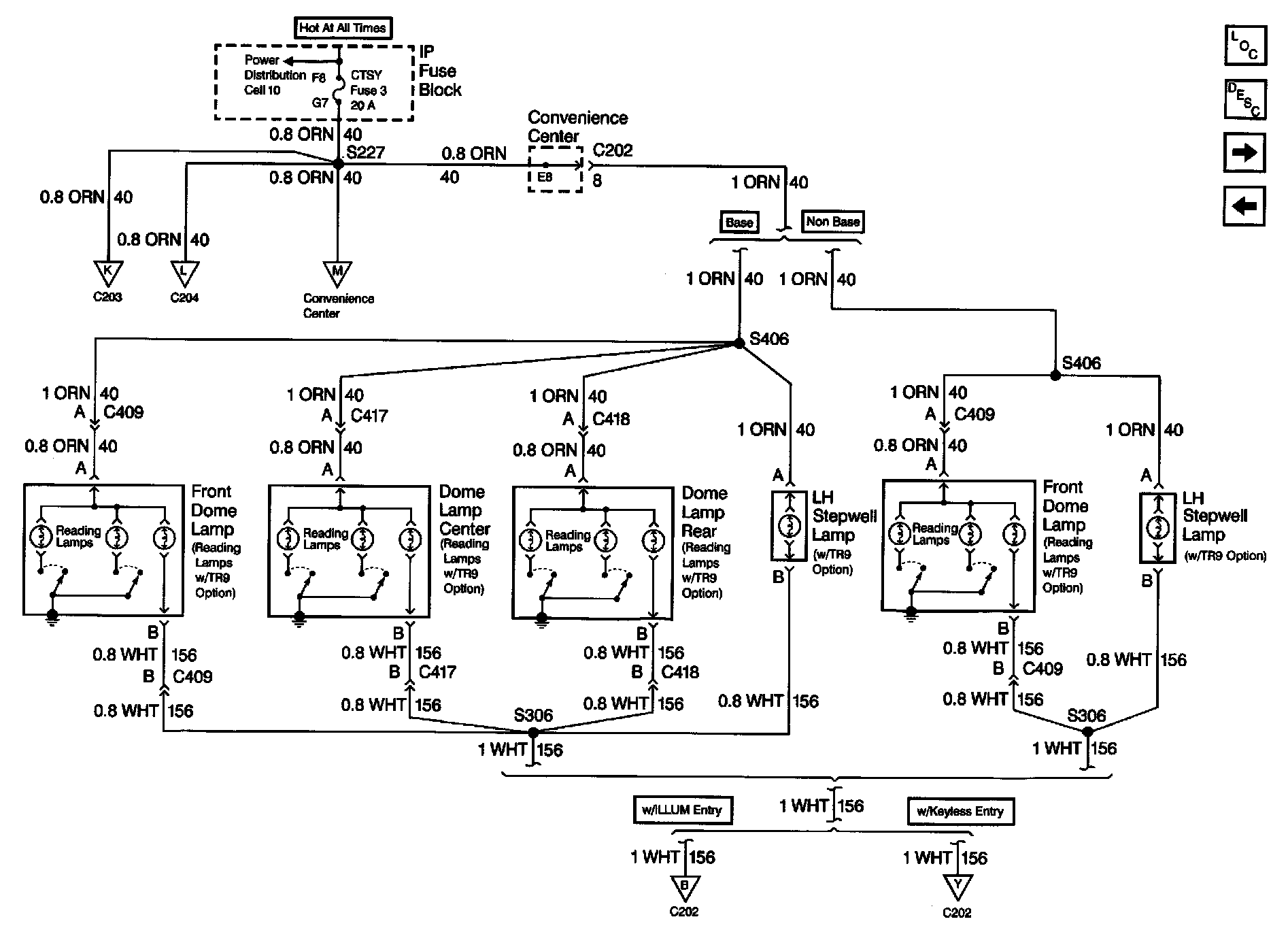

CTSY Fuse, Dome Lamps, Left Stepwell Lamp

Interior Lights Schematics: CTSY Fuse, Dome Lamps, Left Stepwell Lamp:
