Headlights/Daytime Running Lights (DRL) Schematics
>>
Brake Pressure Differential SW, HDLP (Sealed & Composite Beams)
Brake Pressure Differential SW, HDLP (Sealed & Composite Beams)

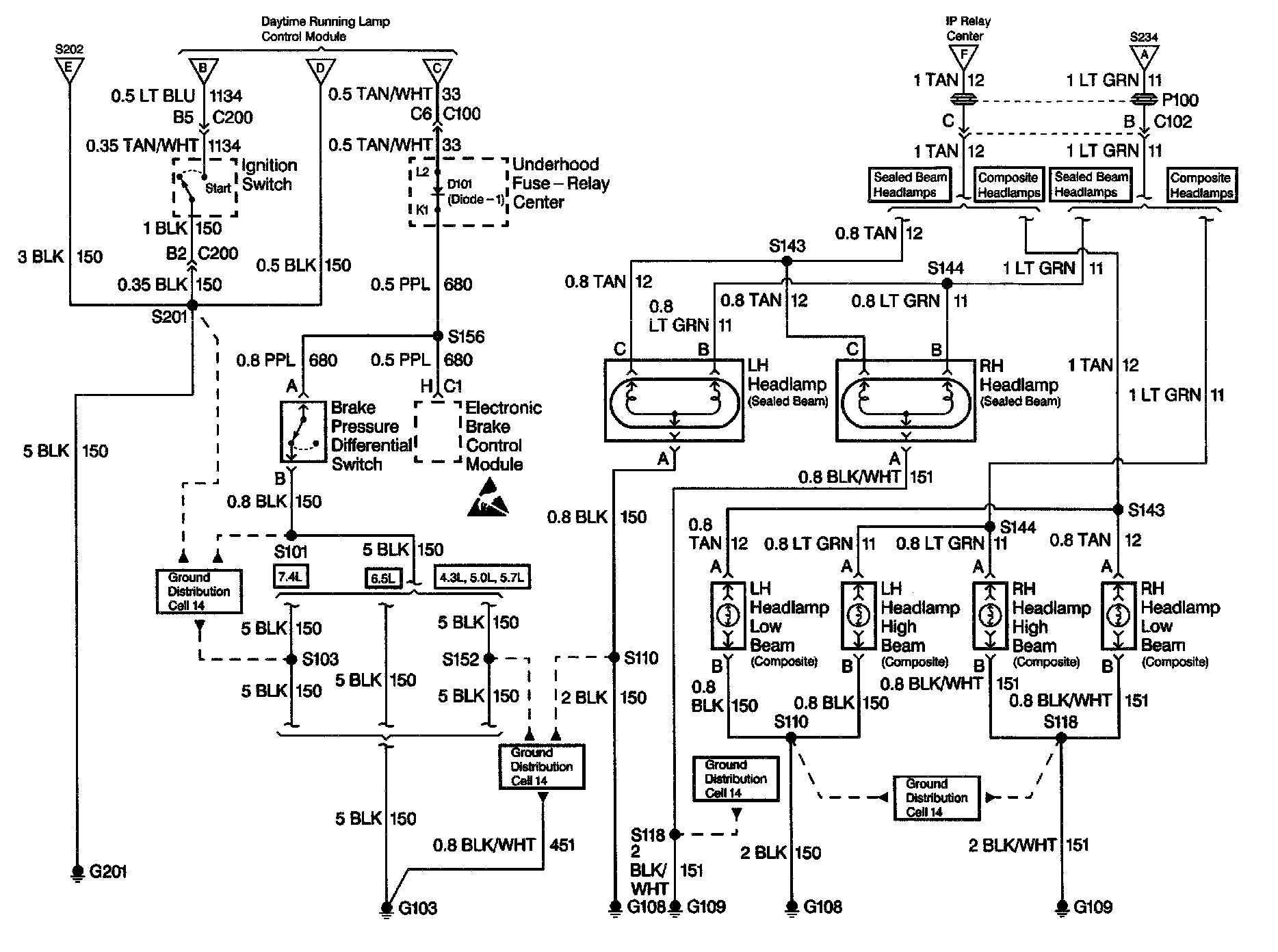

Headlights DRL Schematics (Domestic): Brake Pressure Differential Switch, Headlamps (Sealed And Composite Beams):
