Pressure DIFF Switch, Headlamps

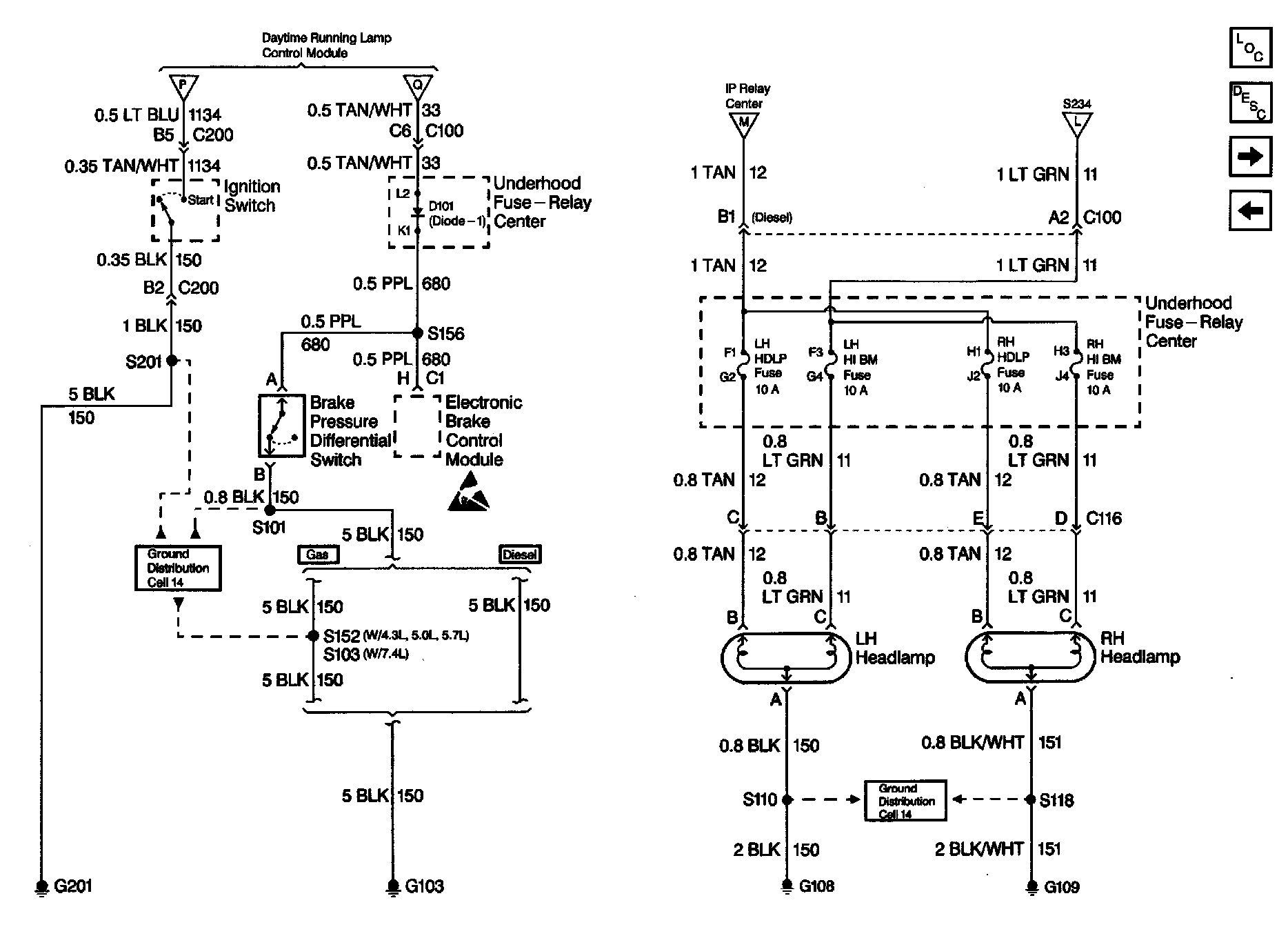

Headlights DRL Schematics (Export): Pressure Diff Switch, Headlamps:
