Headlights/Daytime Running Lights (DRL) Schematics (Export)
>>
Park Brake Warning Switch, DRL Relay, DRL and RR Park
Park Brake Warning Switch, DRL Relay, DRL and RR Park

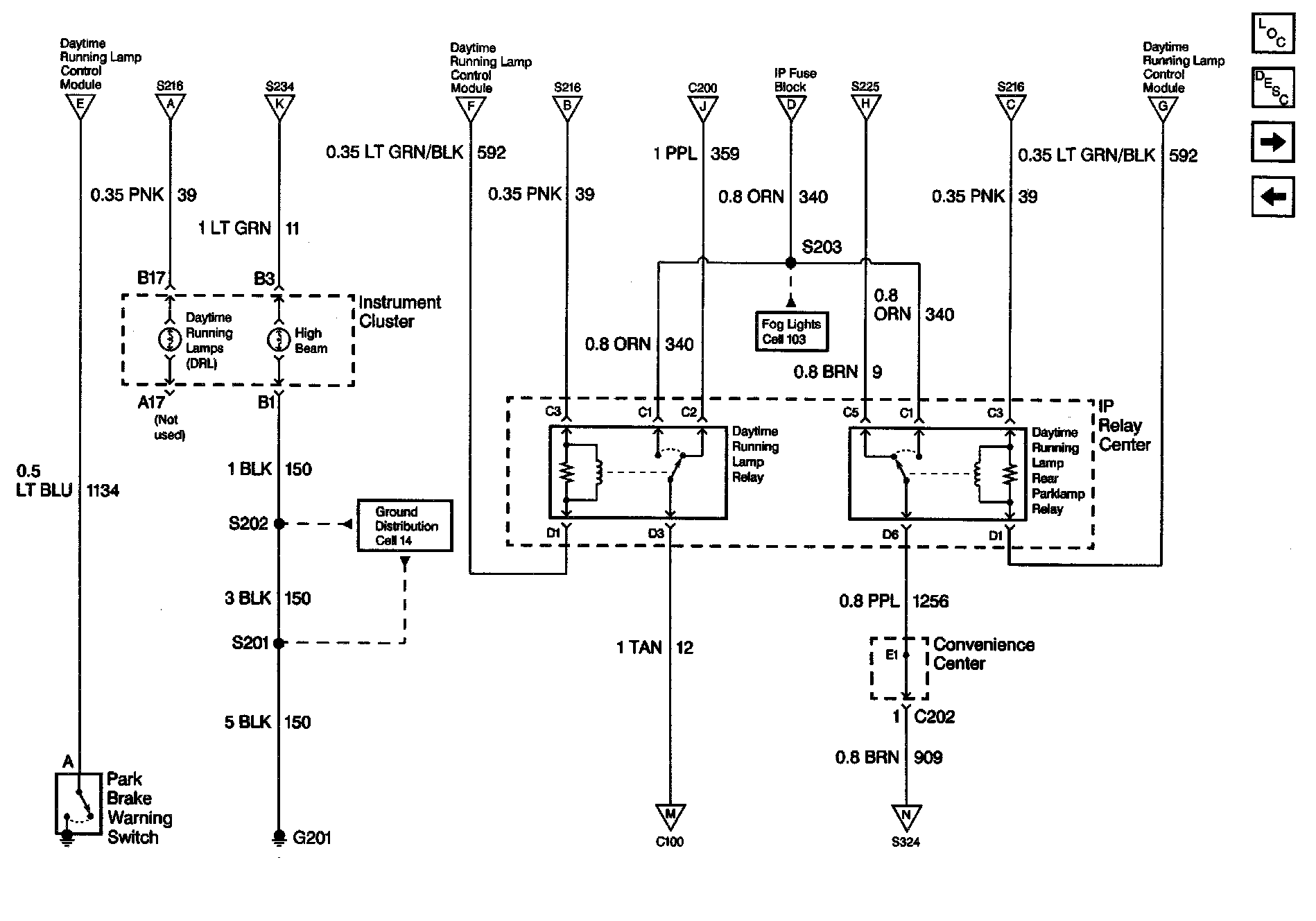

Headlights DRL Schematics (Export): Park Brake Warning Switch, DRL Relay, DRL And RR Park:
