Exterior Lights
>>
Exterior Lights Schematics
>>
Tail LPS, R/PK & TN SIG LPS, CHMSL, License LP, G400,401
Tail LPS, R/PK & TN SIG LPS, CHMSL, License LP, G400,401

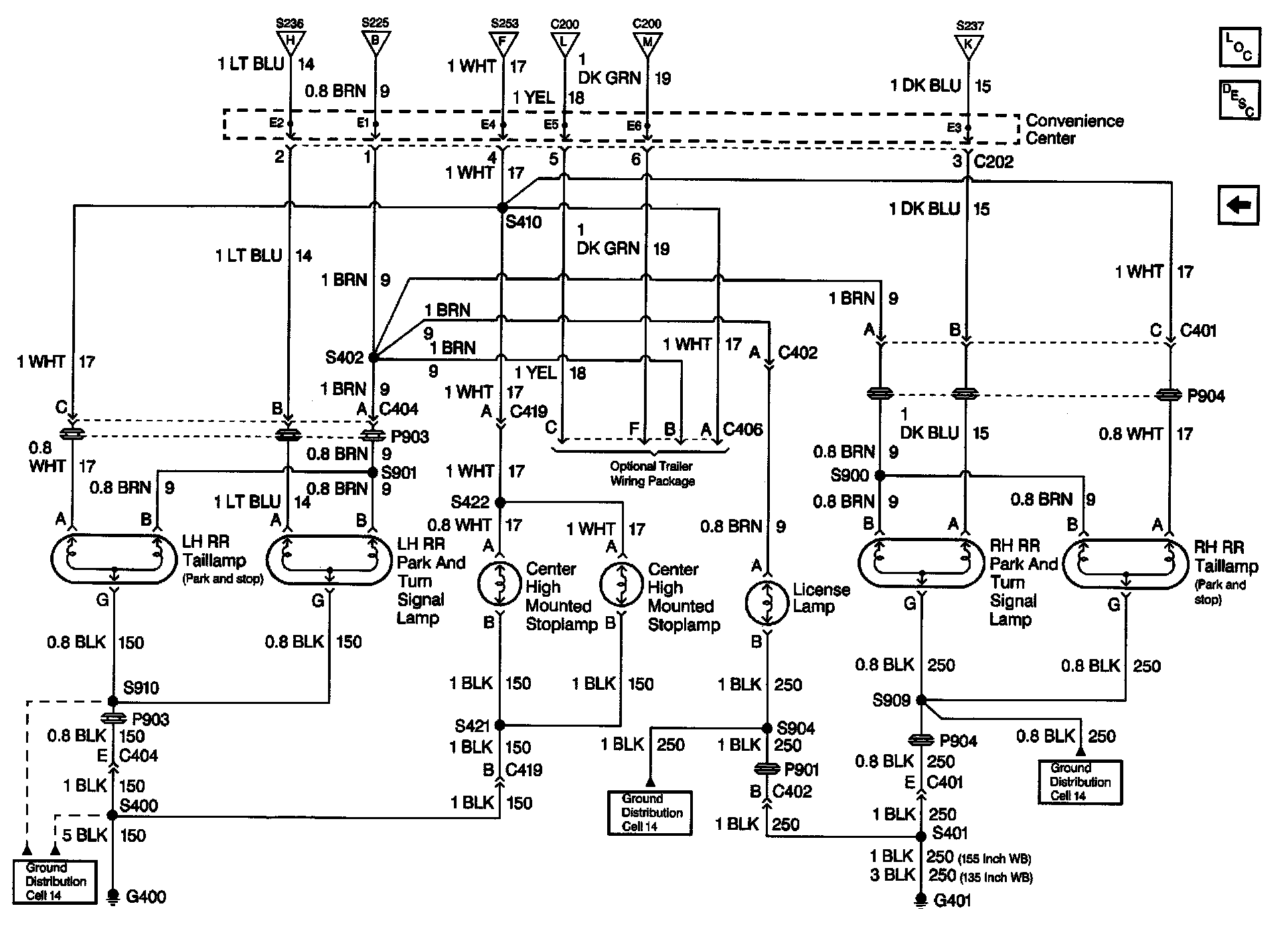

Exterior Lights Schematics (Domestic): Taillamps, Rear Park And Turn Signal Lamps, Center High Mounted Stoplamps, License Lamp, G400, G401 (Composite):
