Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster Schematics
>>
Instrument Cluster Analog Schematics (Export)
>>
Left Turn LP, Right Turn LP, High Beam, Safety Belt, ILLUM LPS
Left Turn LP, Right Turn LP, High Beam, Safety Belt, ILLUM LPS

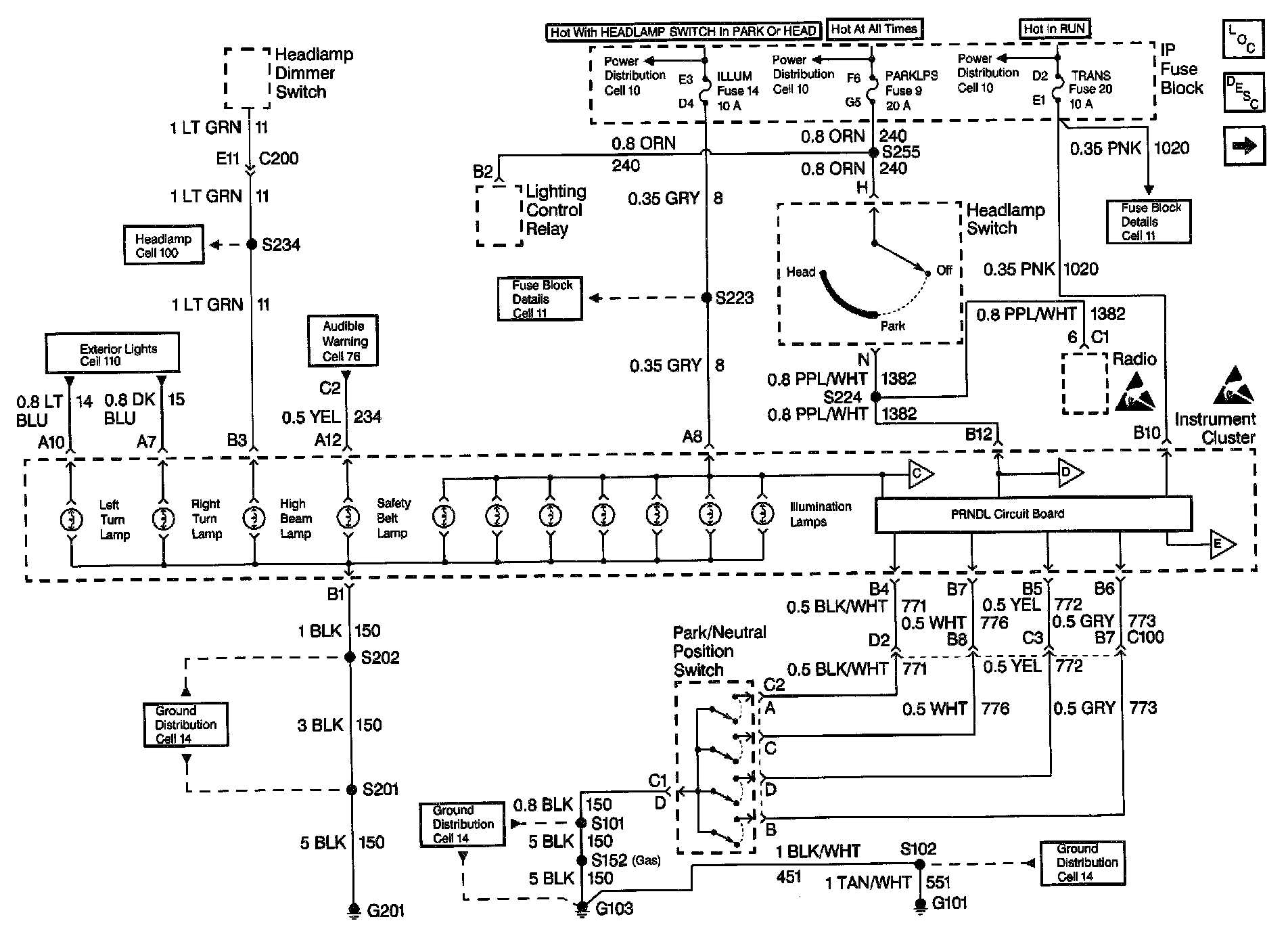

Instrument Cluster Analog Schematics (Export): Left Turn Lamp, Right Turn Lamp, High Beam, Safety Belt, Illum Lamps:
