Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Schematics >> Instrument Cluster Analog Schematics (Export) >> Fuel Gauge, Voltmeter, Temp Gauge, Check Gauges LP Driver

Fuel Gauge, Voltmeter, Temp Gauge, Check Gauges LP Driver

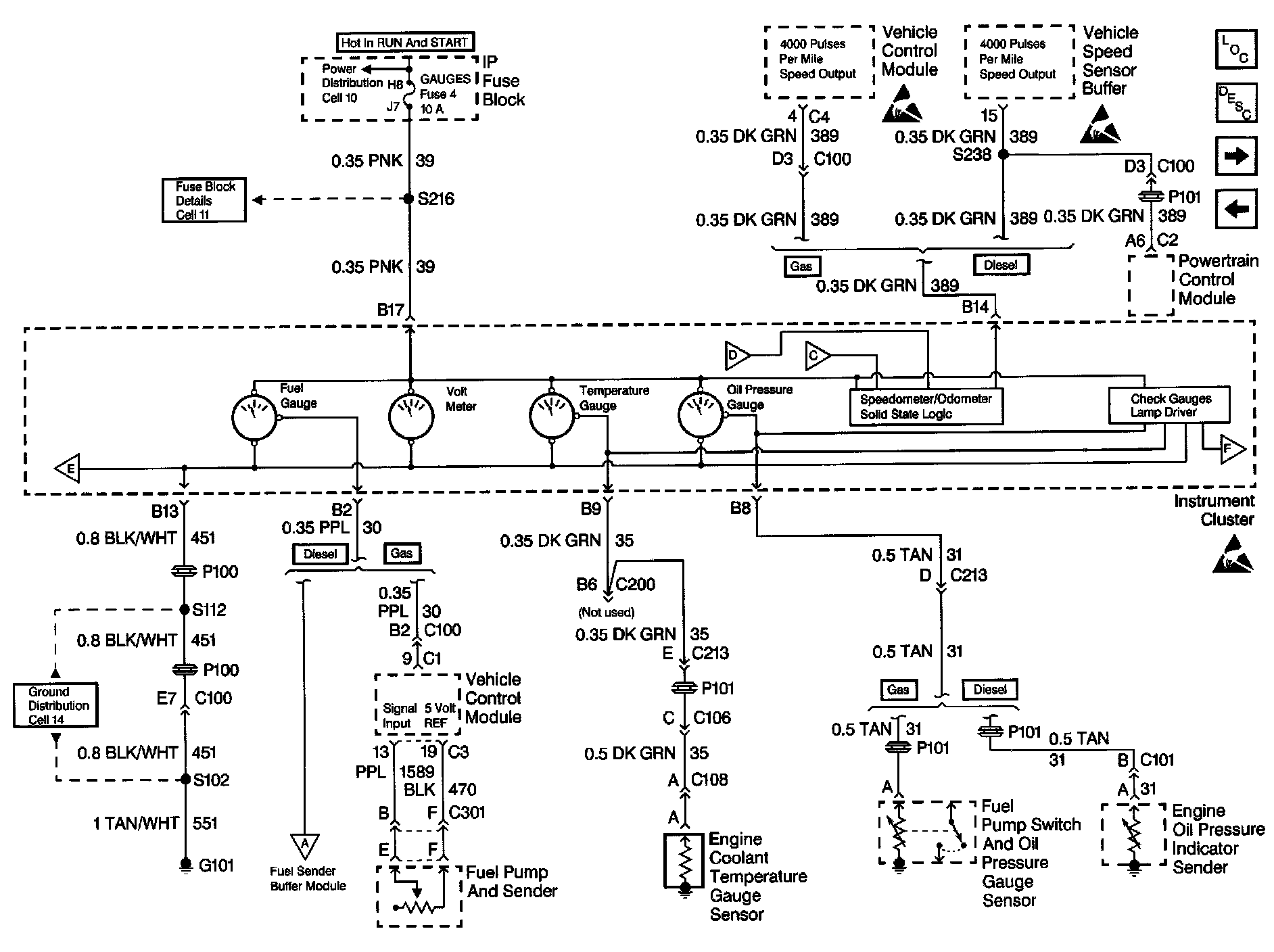

Instrument Cluster Analog Schematics (Export): Fuel Gauge, Voltmeter, Temperature Gauge, Check Gauges Lamp Driver:
