Instrument Cluster Analog Schematics (Export)
>>
Check Gauges, Air Bag, Brake Warning, ABS
Check Gauges, Air Bag, Brake Warning, ABS

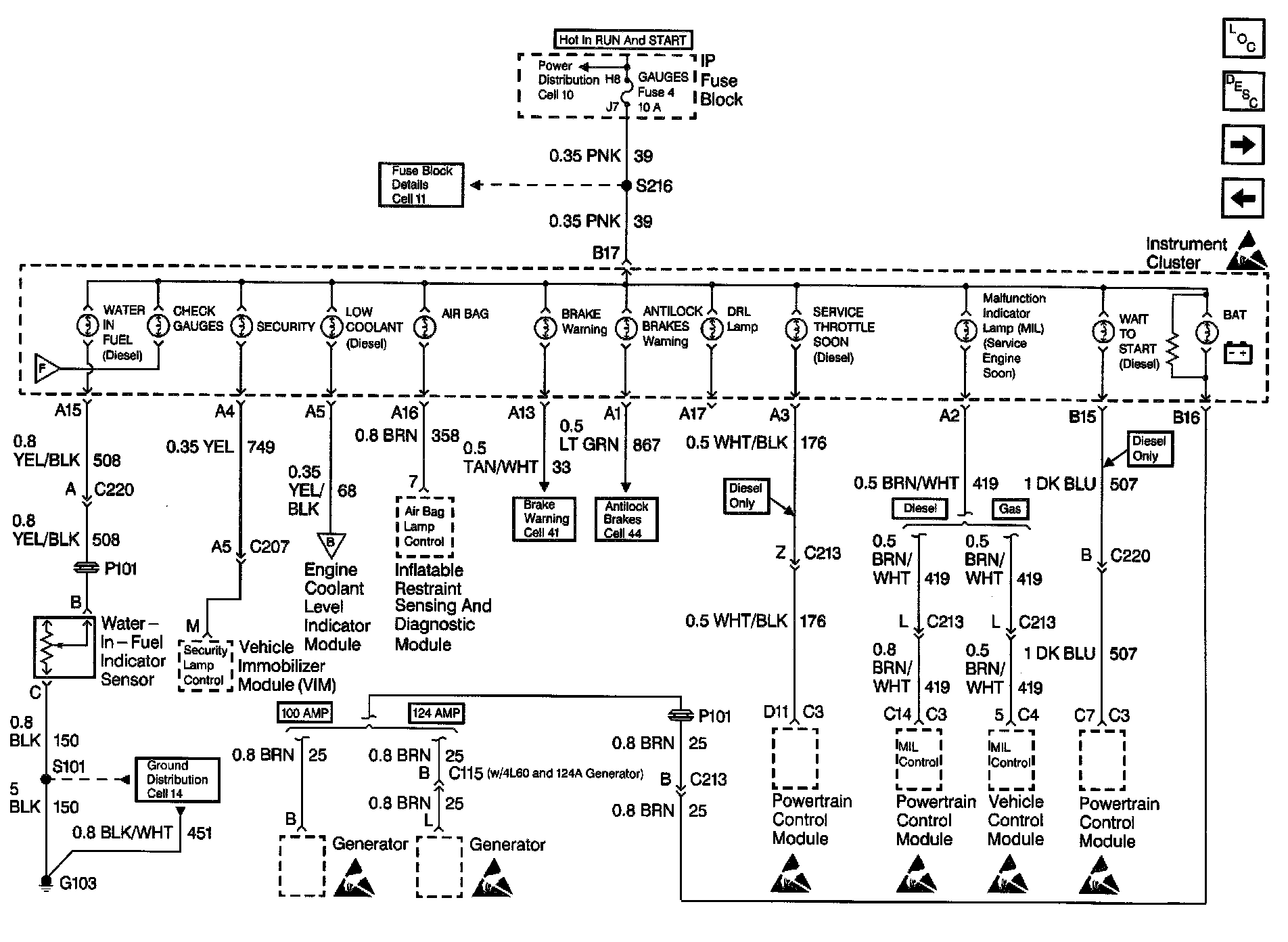

Instrument Cluster Analog Schematics (Export): Water In Fuel, Check Gauges, Air Bag, Brake Warning, ABS Warning, DRL Service Throttle Soon, Malfunction, Wait, Battery:
