Gauges Fuse, Water-In-Fuel Indicator Sensor, G103
Gauges Fuse, Water-In-Fuel Indicator Sensor, G103

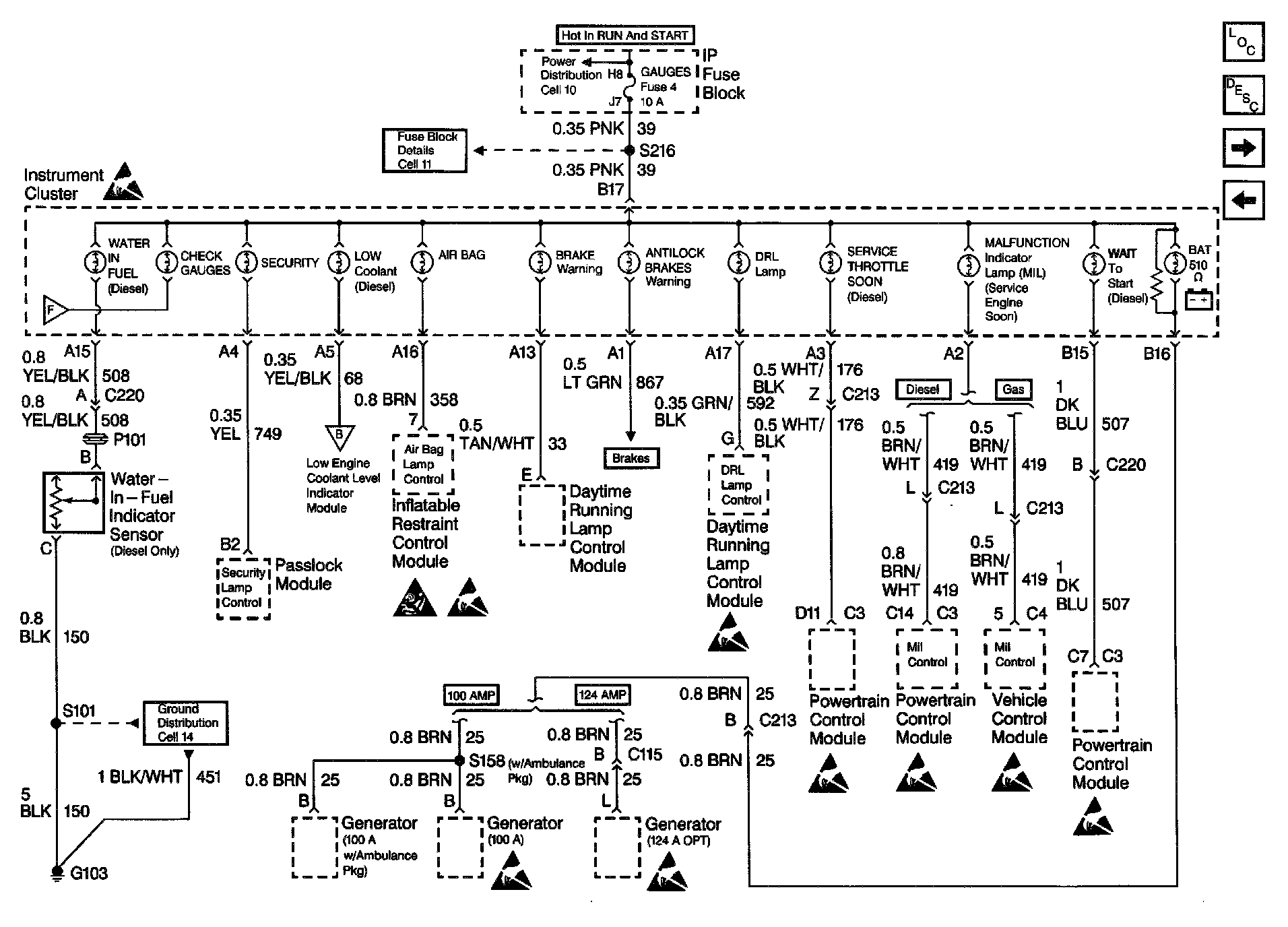

Instrument Cluster Analog Schematics (Domestic): Gauges Fuse, Water-in-Fuel Indicator Sensor, G103:
