Chevy Truck
>>
1999
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster Schematics
>>
Instrument Cluster Analog Schematics (Domestic)
>>
Gauges Fuse, Fuel Buffer Module, Coolant Mdle, G103, G201, G209
Gauges Fuse, Fuel Buffer Module, Coolant Mdle, G103, G201, G209

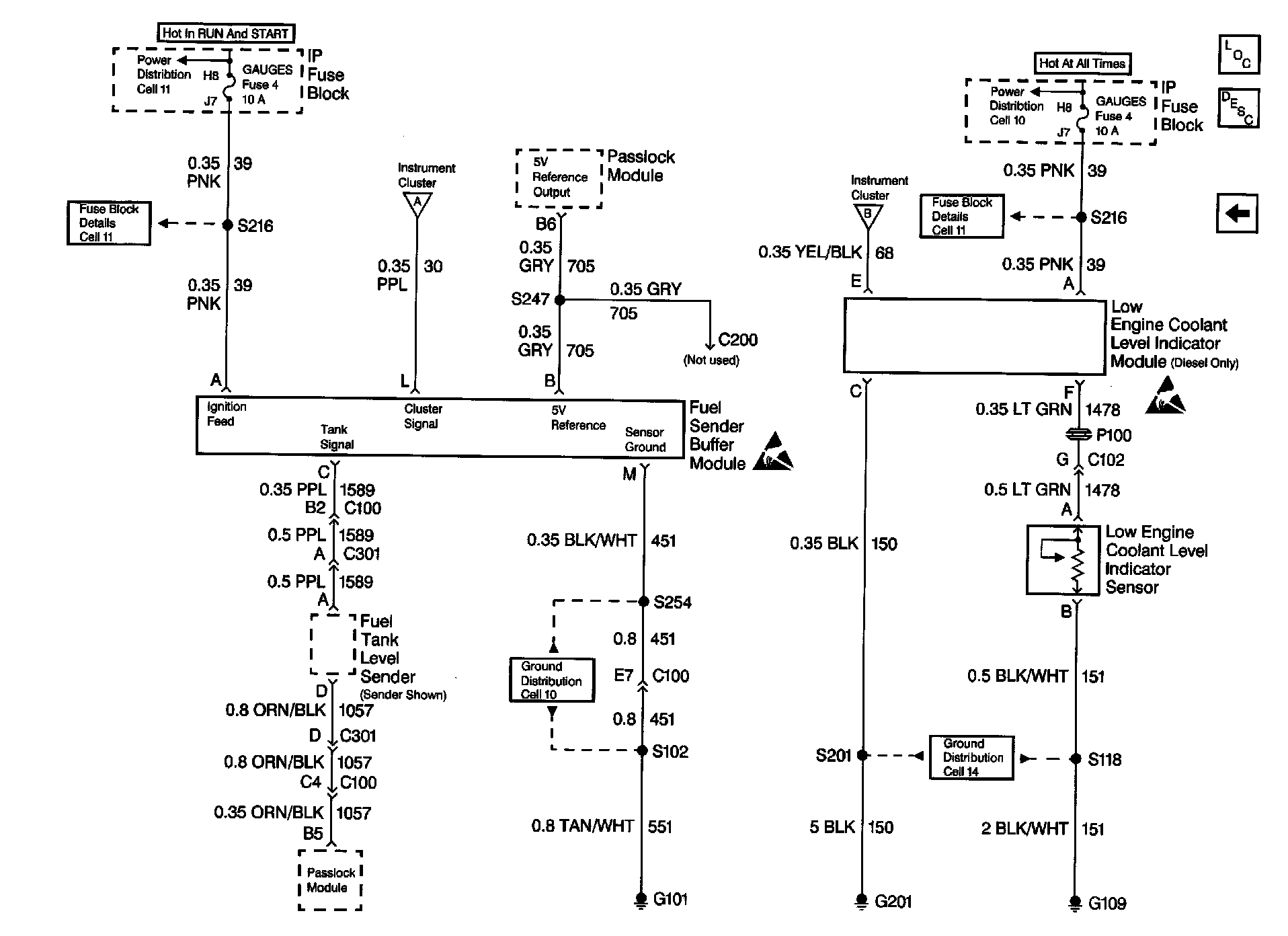

Instrument Cluster Analog Schematics (Domestic): Gauges Fuse, Fuel Sender Buffer Module, Low Engine Coolant Level Indicator Module, Low Coolant Level Indicator Sensor, G103, G201, G209:
