Instrument Cluster Schematics
>>
Instrument Cluster Analog Schematics (Domestic)
>>
Gauges Fuse, Engine Coolant Temperature Gauge Sender, G101
Gauges Fuse, Engine Coolant Temperature Gauge Sender, G101

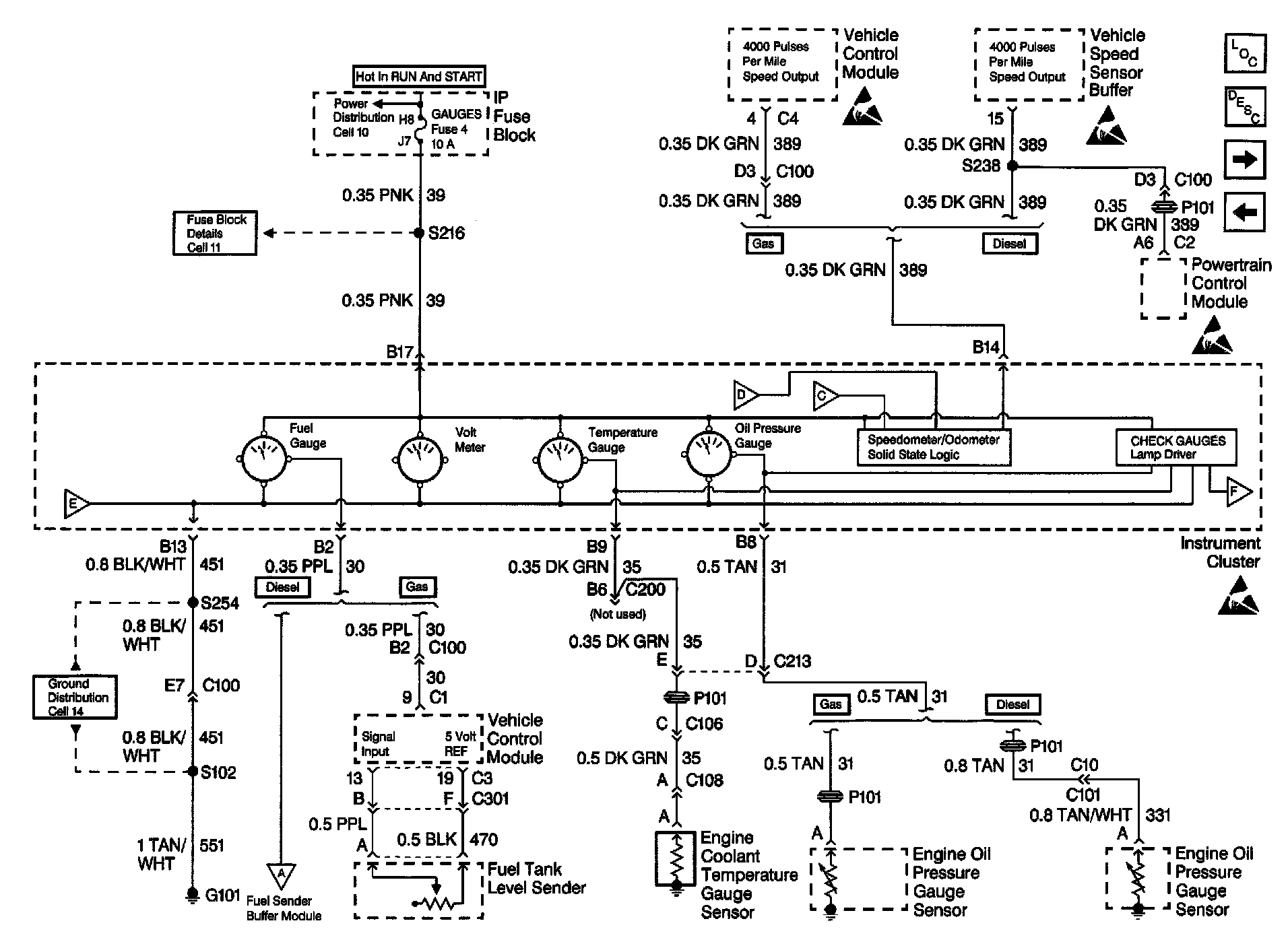

Instrument Cluster Analog Schematics (Domestic): Gauges Fuse, Engine Coolant Temperature Gauge Sender, G101:
