RR BLOWER & RR HVAC Fuses,Aux. Blower M,G301,School Bus Option
RR BLOWER & RR HVAC Fuses,Aux. Blower M,G301,School Bus Option

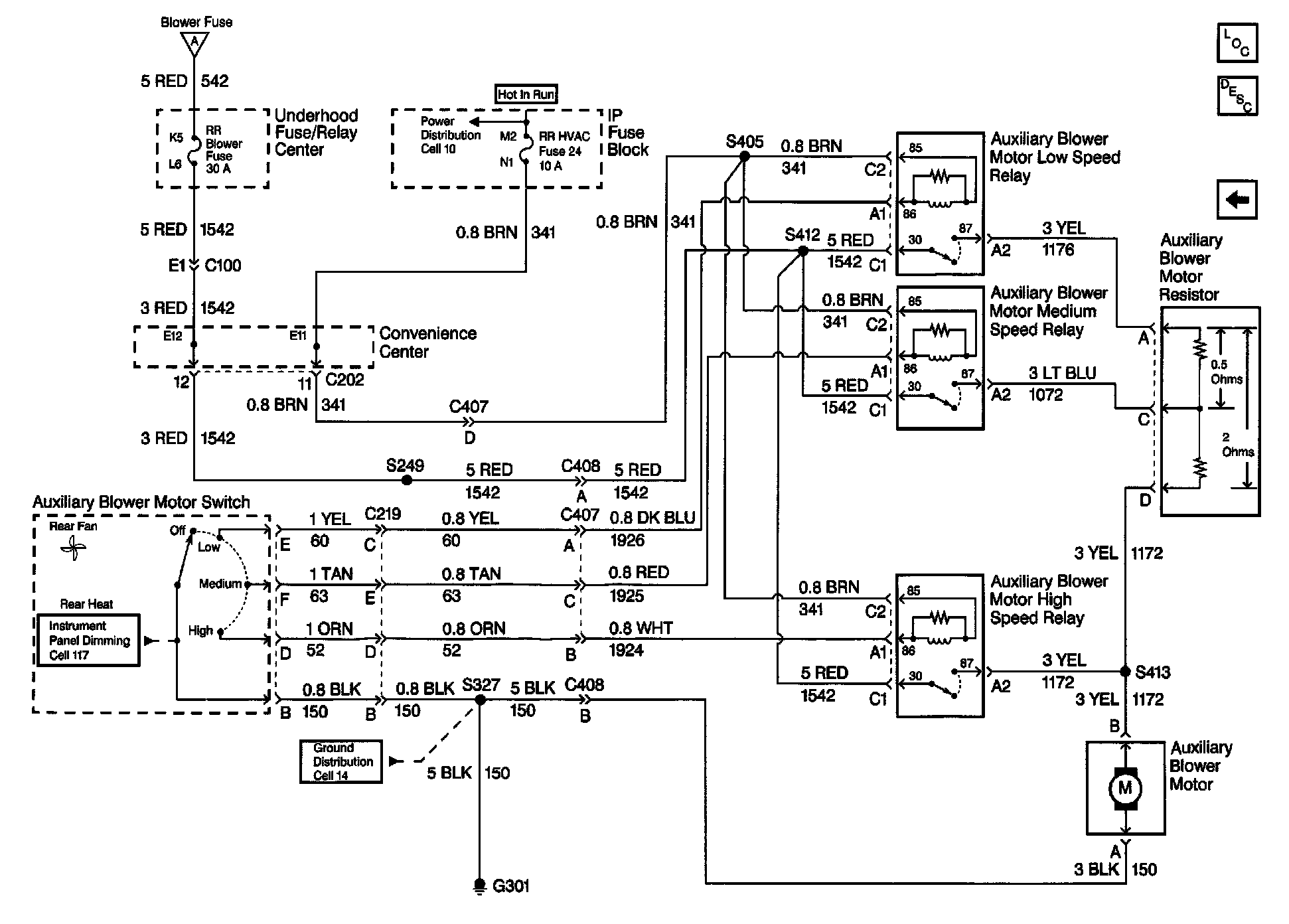

Heater Blower Controls Schematics: RR BLOWER And RR HVAC Fuses, Auxiliary Blower Motor, G301, School Bus Option:
