Blower and HTR-A/C Fuses, Blower Motor, G103
Blower and HTR-A/C Fuses, Blower Motor, G103

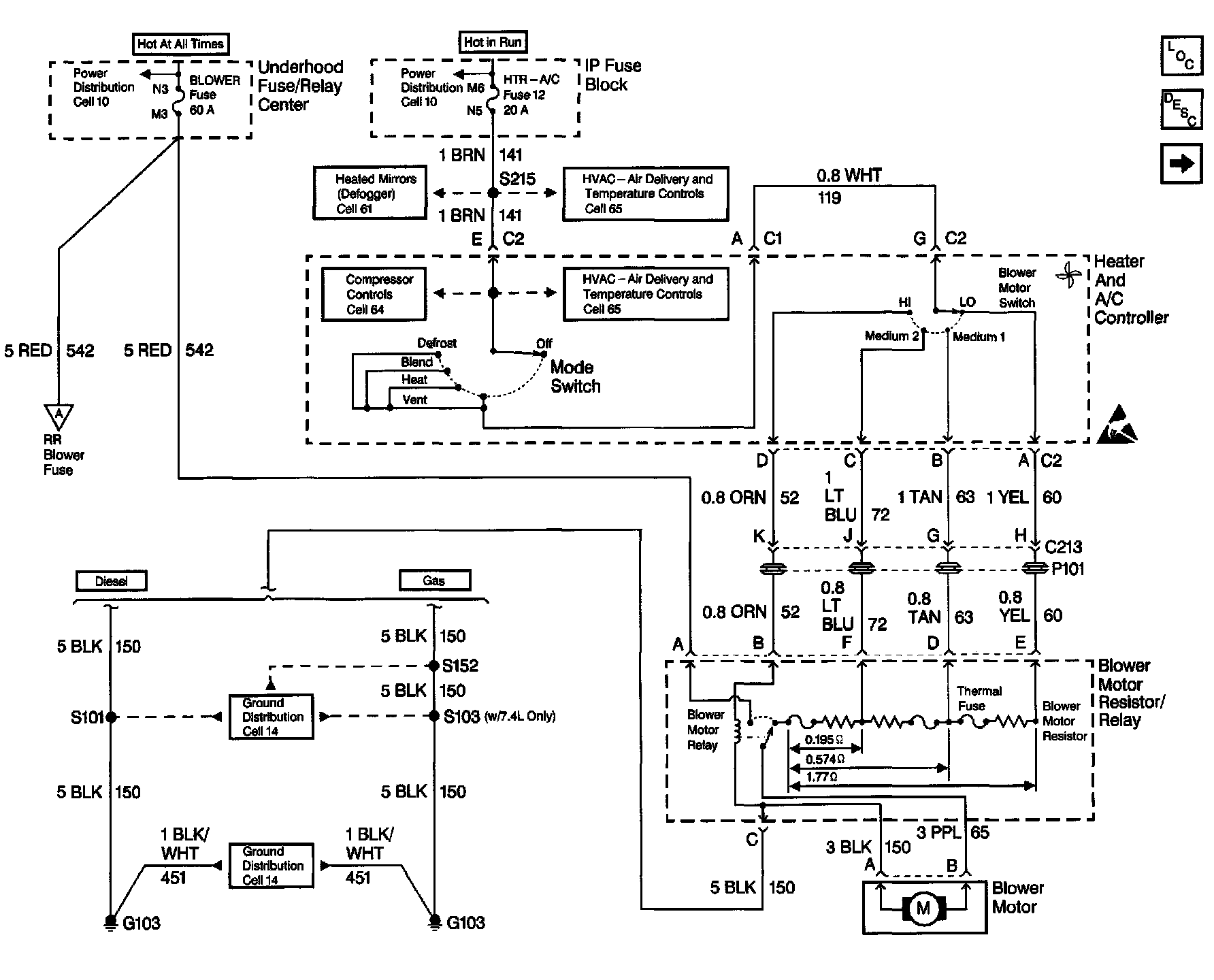

Heater Blower Controls Schematics: BLOWER And HTR-A/C Fuses, Blower Motor, G103:
