RR BLOWER And RR HVAC Fuses, Auxiliary Blower Motor, G400

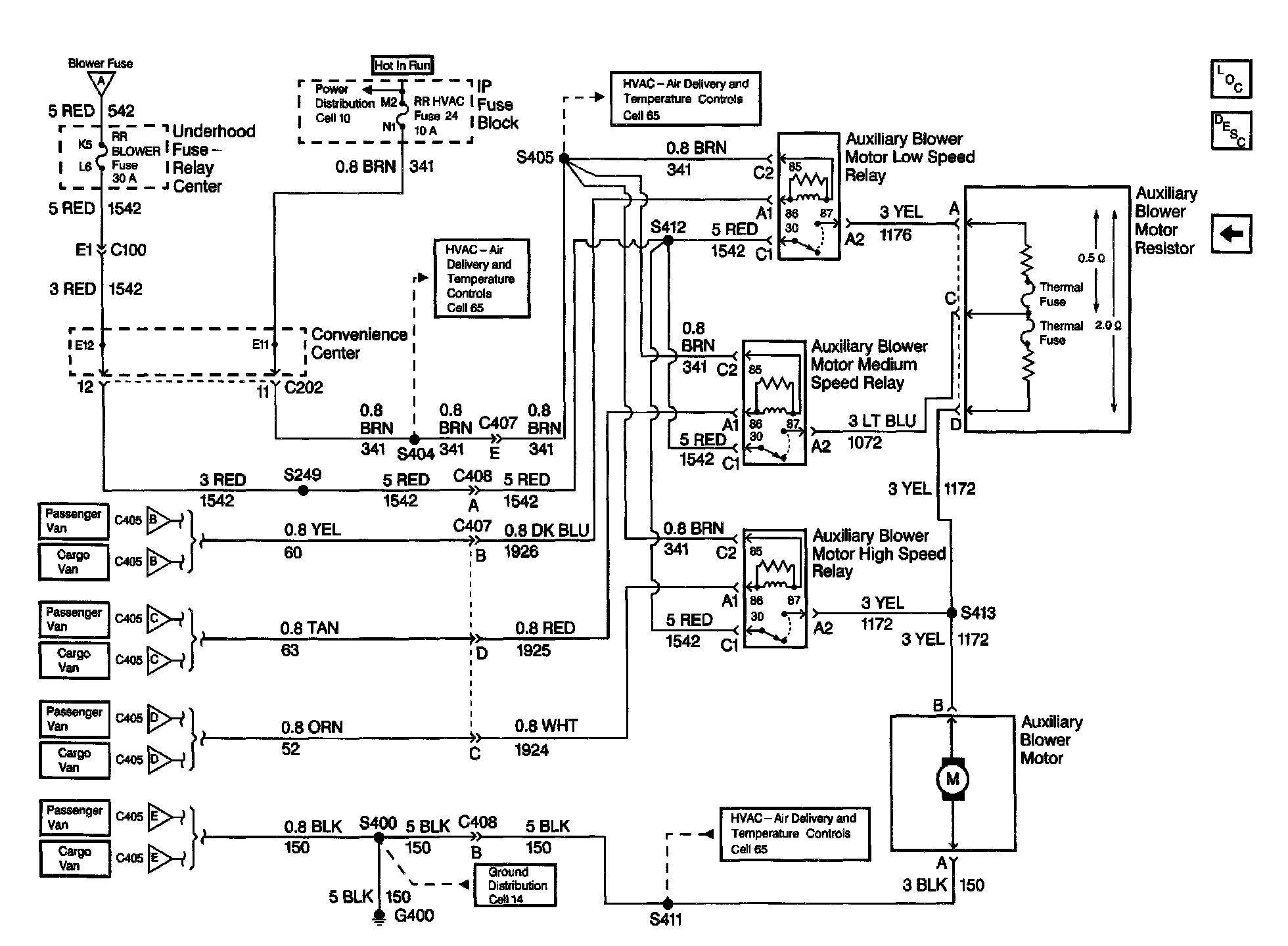

HVAC Blower Control Schematics: RR BLOWER And RR HVAC Fuses, Auxiliary Blower Motor, G400:
