Front And Rear Auxiliary HVAC Control Modules

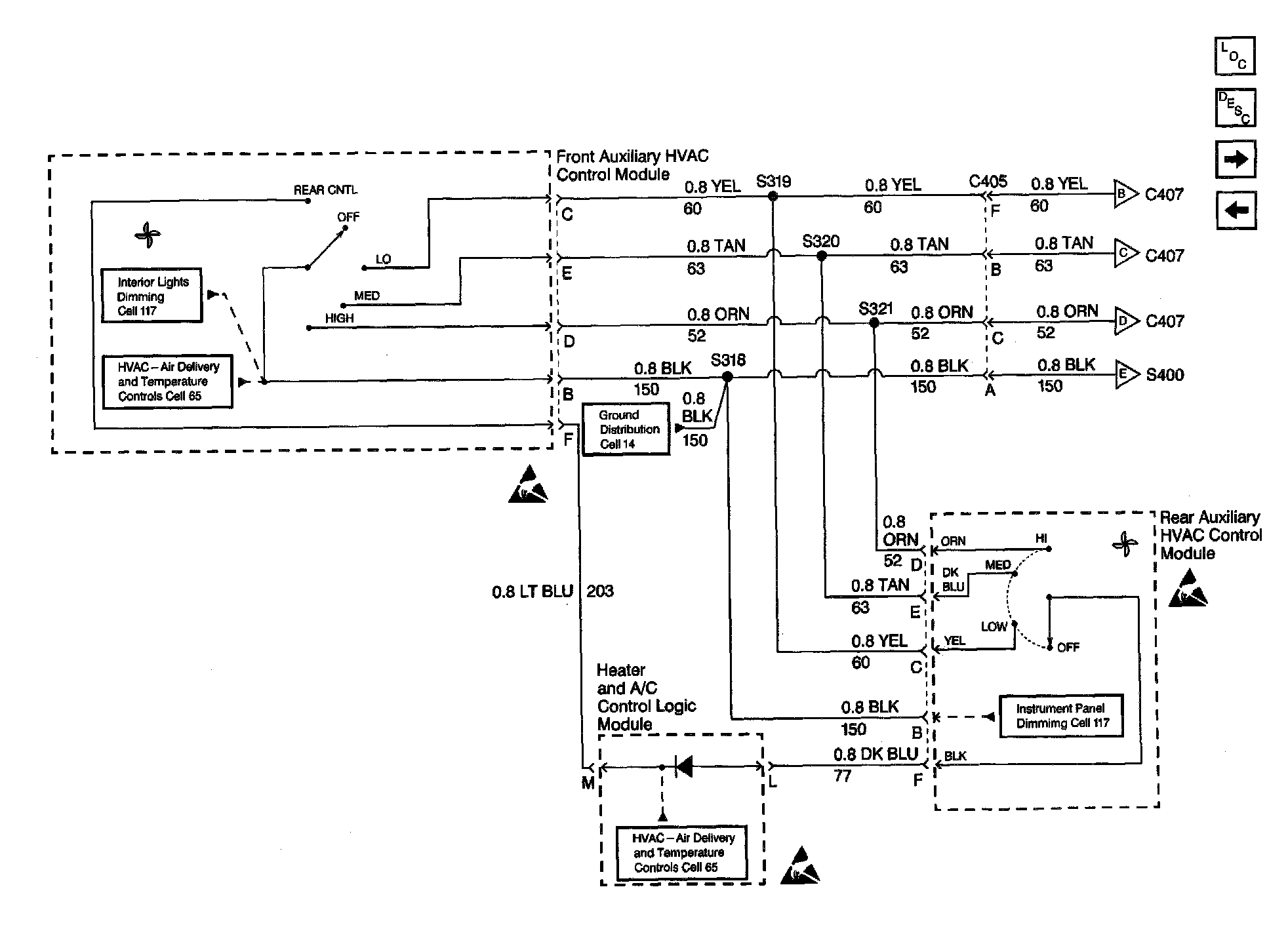

HVAC Blower Control Schematics: Front And Rear Auxiliary HVAC Control Modules:
