HVAC System - Manual
>>
Heater Blower Controls Schematics
>>
BLOWER And HTR-A/C Fuses, Blower Motor, G103
BLOWER And HTR-A/C Fuses, Blower Motor, G103

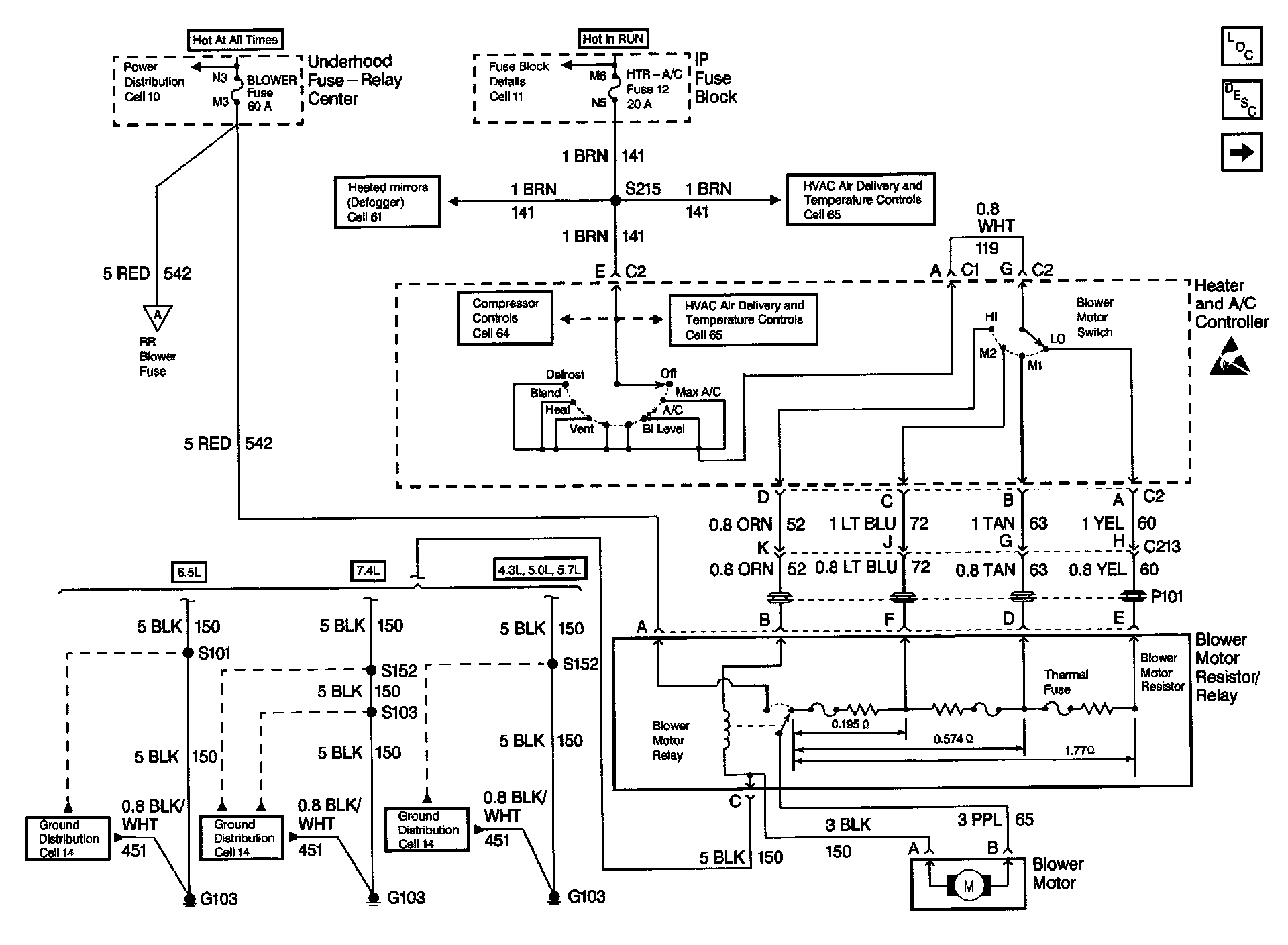

HVAC Blower Control Schematics: BLOWER And HTR-A/C Fuses, Blower Controls, Blower Motor G103:
