HVAC System - Manual
>>
HVAC Compressor Control Schematics
>>
ECM-B, IGN-E, A/C Fuses; Clutch, Low PRESS Cutout SW, G101,-103
ECM-B, IGN-E, A/C Fuses; Clutch, Low PRESS Cutout SW, G101,-103

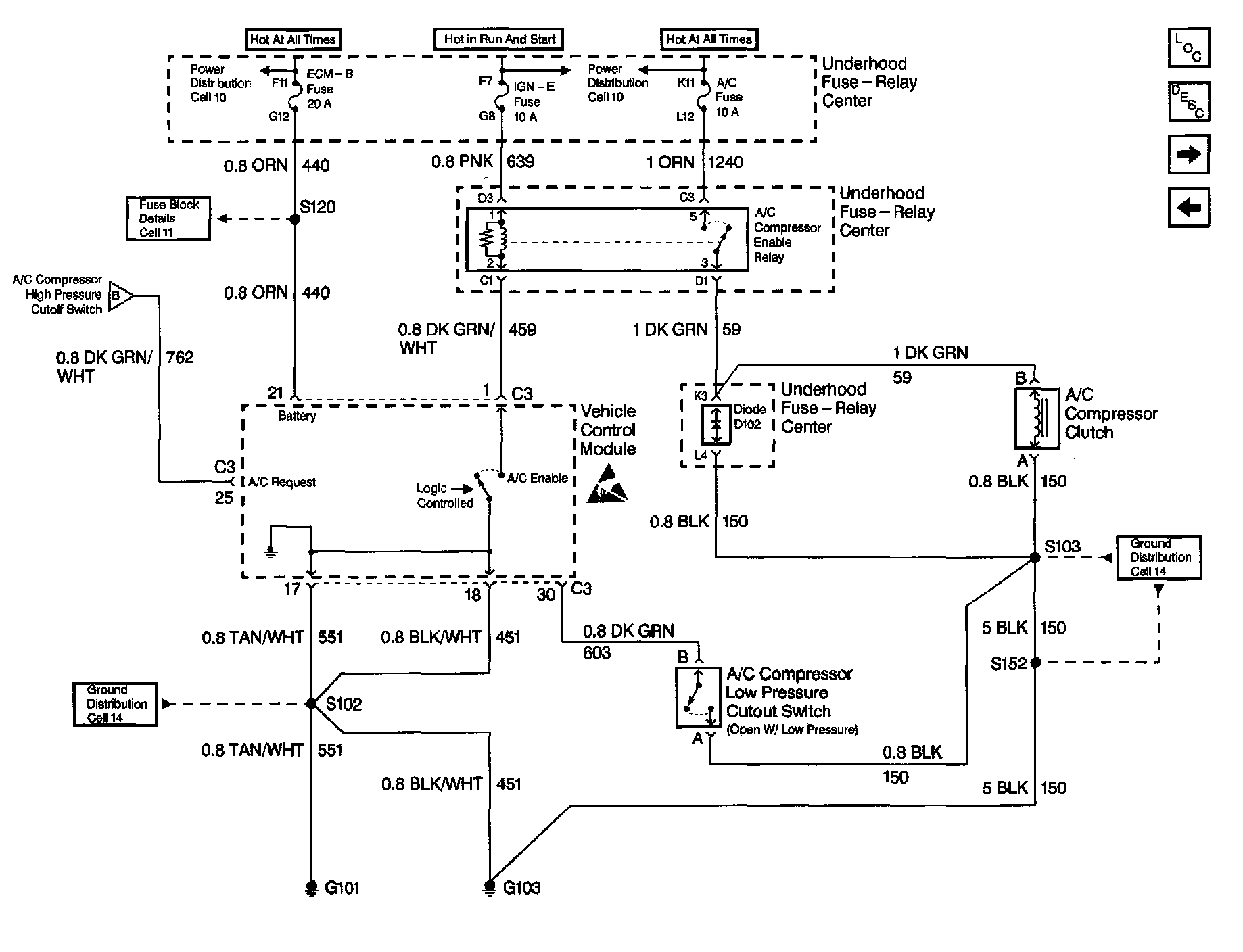

HVAC Compressor Control Schematics: ECM-B, IGN-E, A/C Fuses; Compressor Clutch, A/C Compressor Low Pressure Cutout Switch, G101, G103:
