HVAC Fuse, AUX HVAC CNTRL Modules, HTR & A/C CNTRL Logic Module
HVAC Fuse, AUX HVAC CNTRL Modules, HTR & A/C CNTRL Logic Module

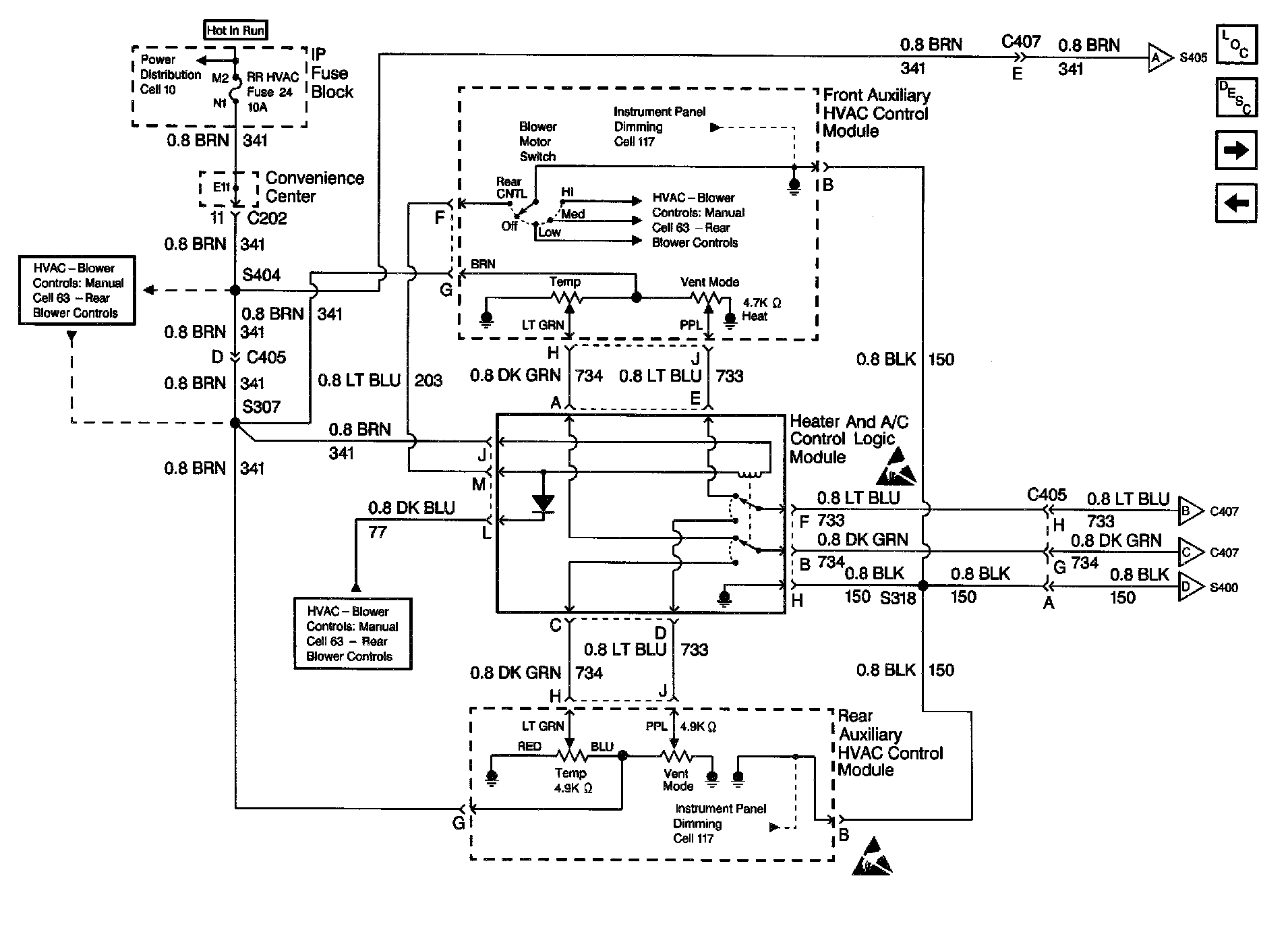

HVAC Air Delivery Schematics: RR HVAC Fuse, Front And Rear Auxiliary HVAC Control Modules, Heater And A/C Control Logic Module:
