HVAC System - Manual
>>
HVAC Air Delivery Schematics
>>
HTR-A/C Fuse, Front Heater And A/C Controller, G201
HTR-A/C Fuse, Front Heater And A/C Controller, G201

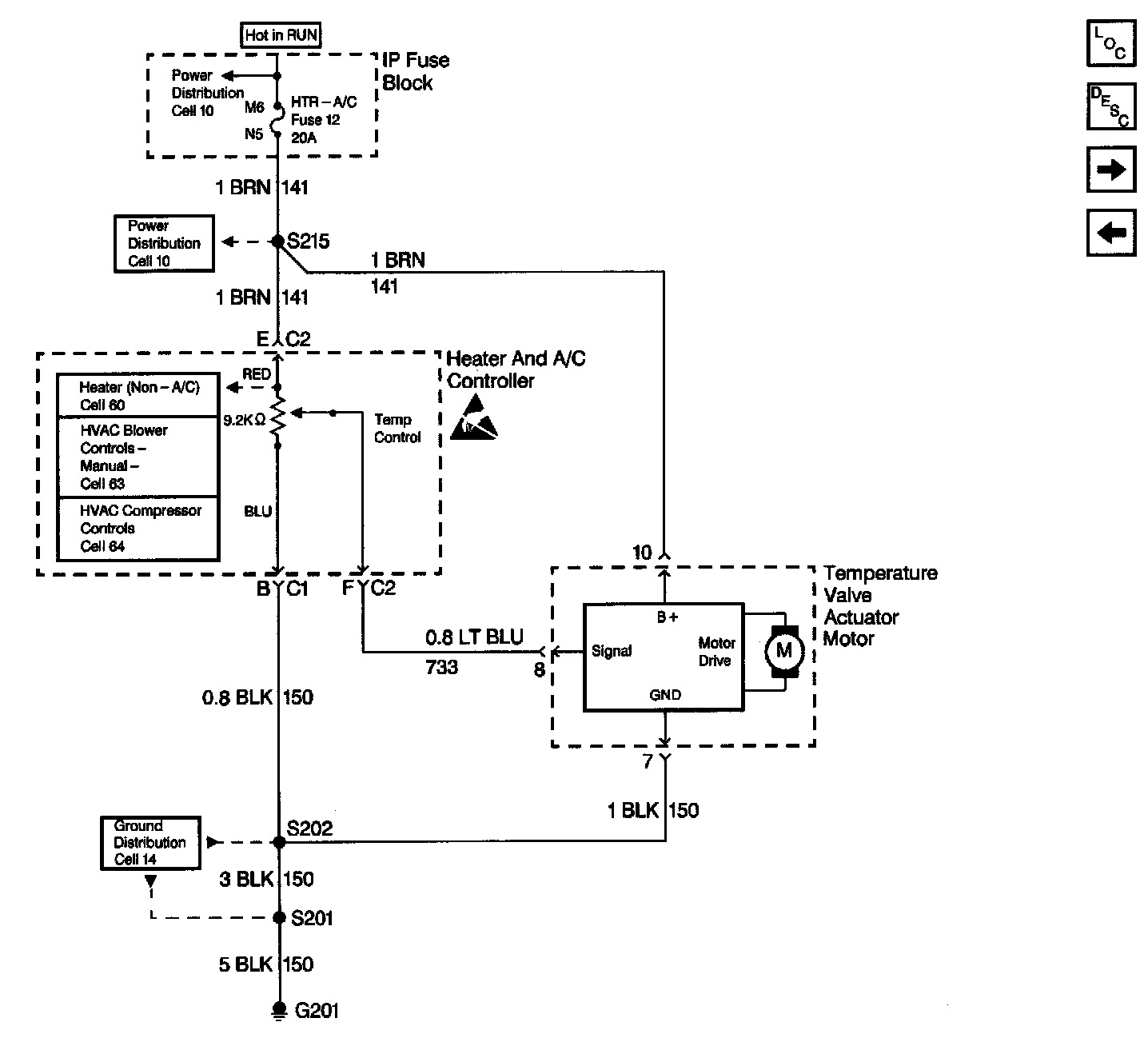

HVAC Air Delivery Schematics: HTR-A/C Fuse, Front Heater And A/C Controller, G201:
