Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC System - Manual >> Actuators

Actuators

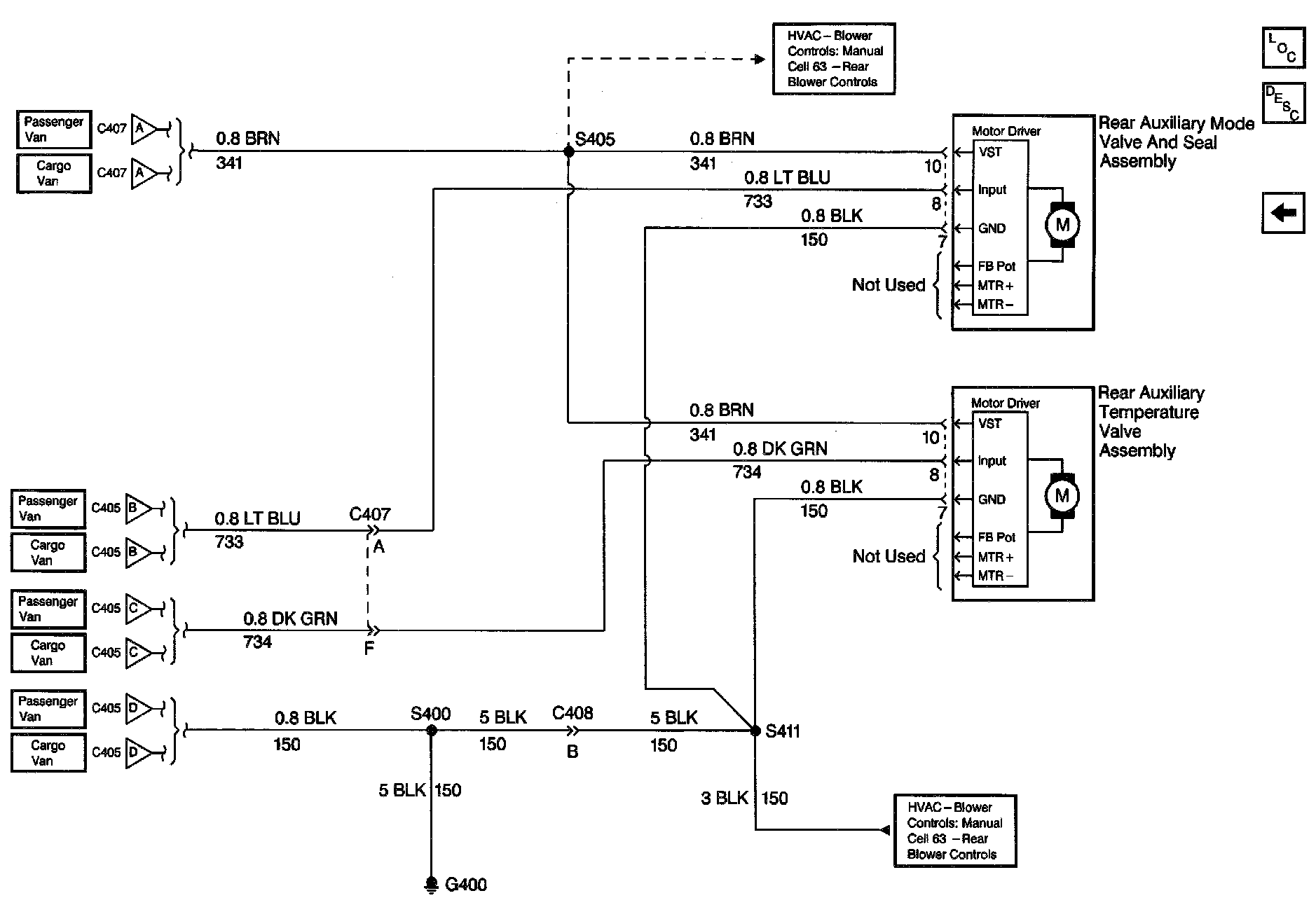

HVAC Air Delivery Schematics: Rear Auxiliary Mode Valve And Seal Assembly, Rear Auxiliary Temperature Valve Assembly, G400:
