Theft Deterrent System Schematics (Passlock)

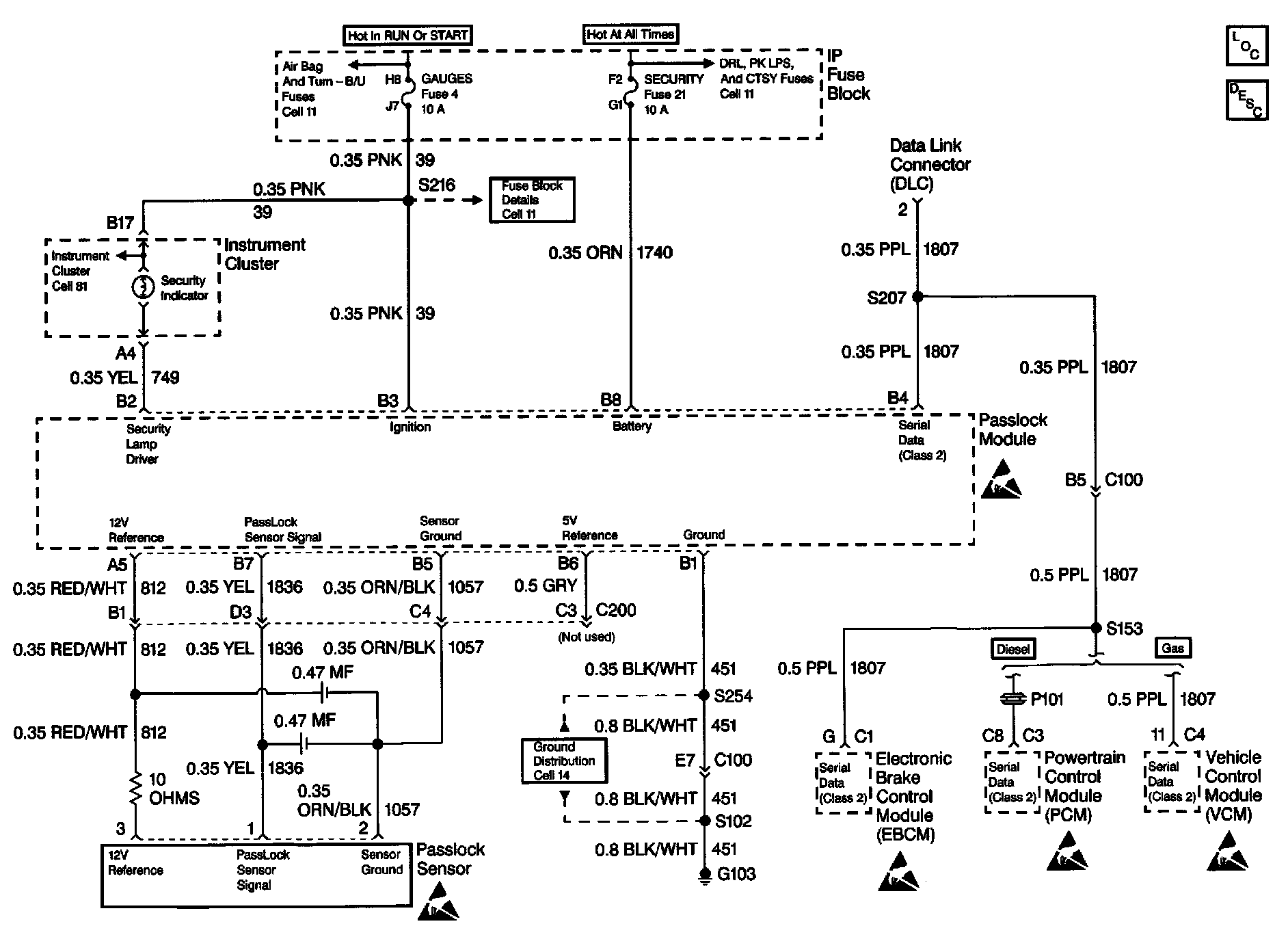

Theft Deterrent System Schematics (Passlock): Passlock Sensor And Module:
