IP Fuse Block, PWR DR Lock SW, VIM
IP Fuse Block, PWR DR Lock SW, VIM

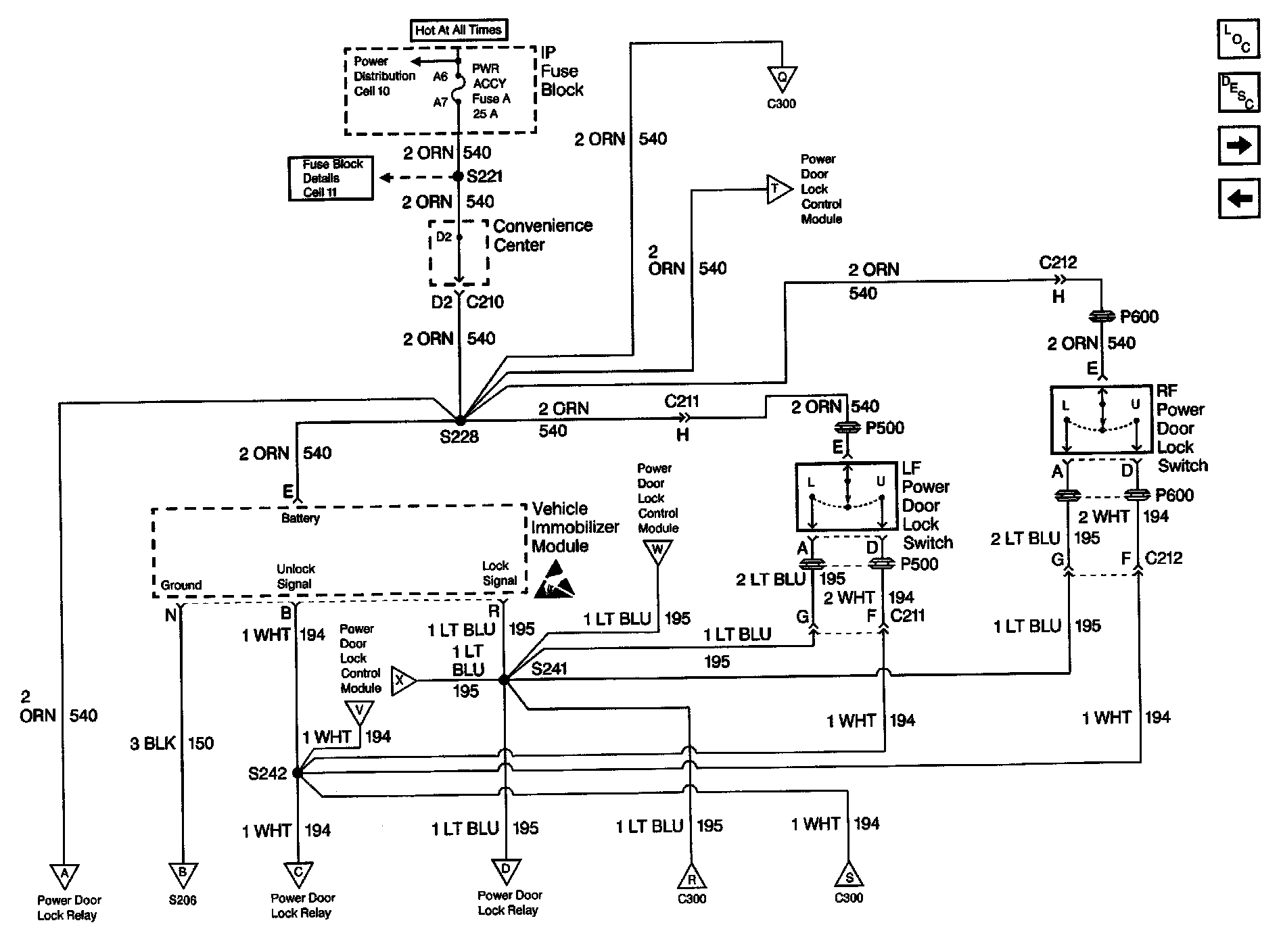

Theft Deterrent System Schematics (Export): IP Fuse Block, PWR DR Lock SW, VIM:
