Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Deterrent System Schematics (Export) >> DR LK Actuator, Side Door Contacts

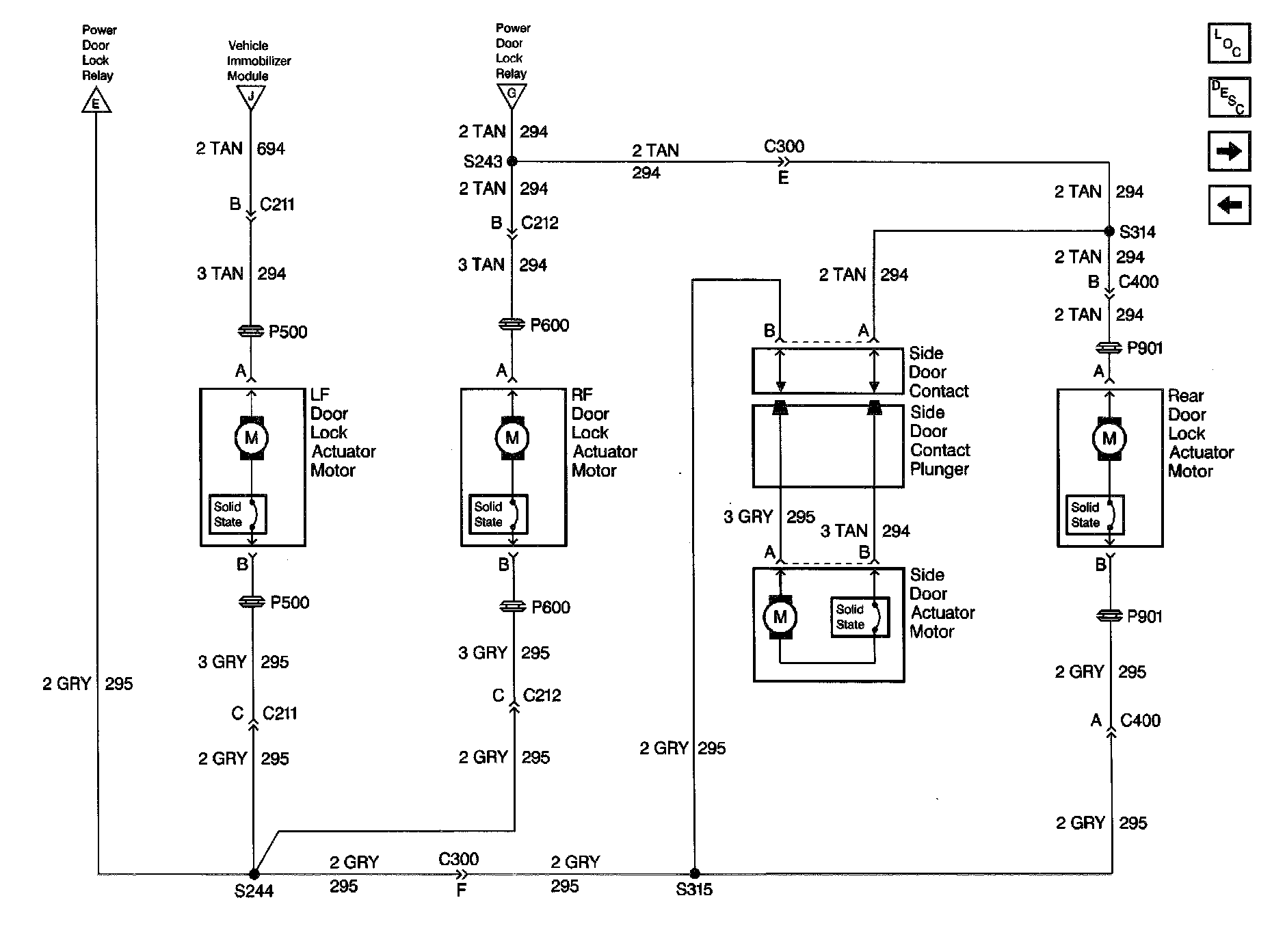

DR LK Actuator, Side Door Contacts

Theft Deterrent System Schematics (Export): DR LK Actuator, Side Door Contacts:
