C206

Instrument Panel Wiring:

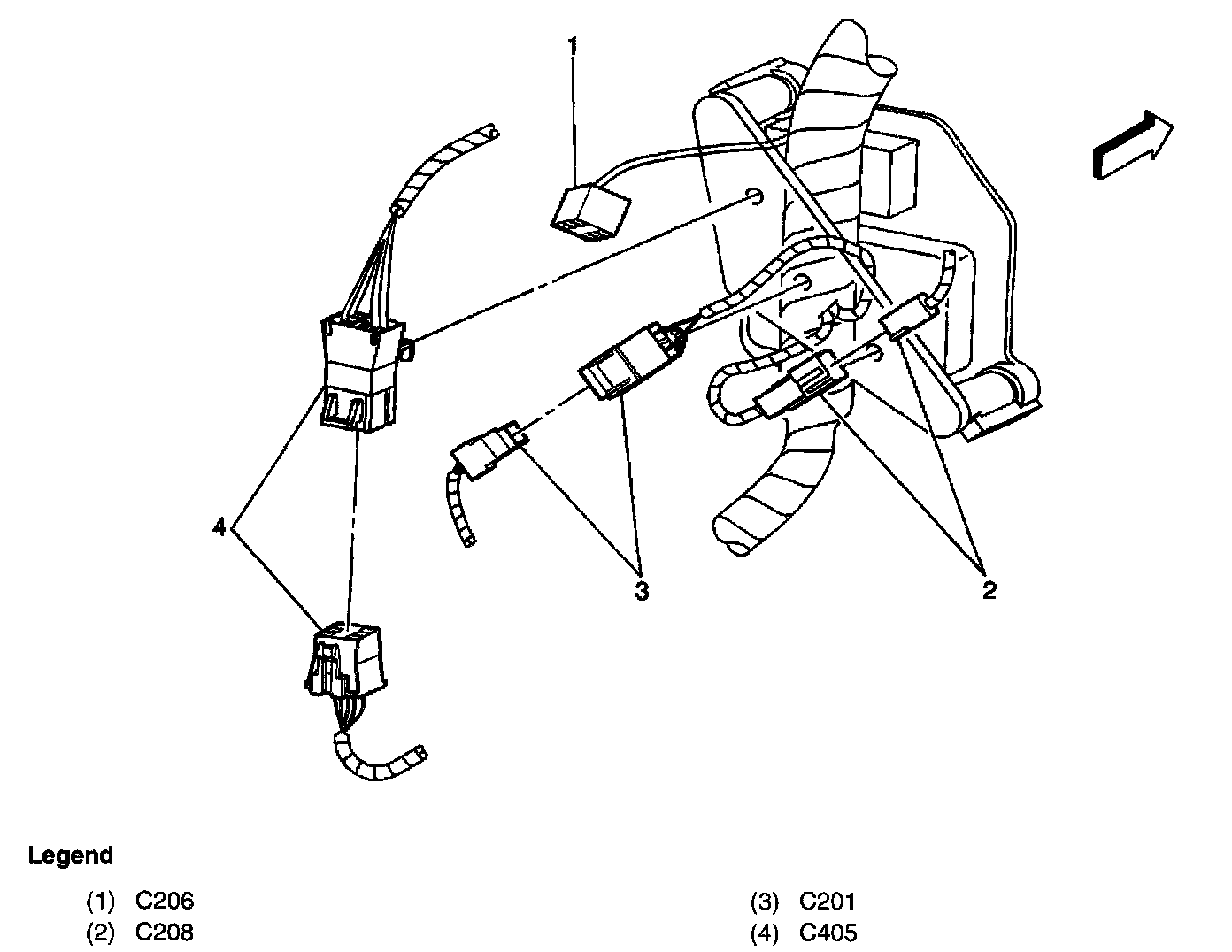

Upfitter harness, under the left side of the IP, near the convenience center
